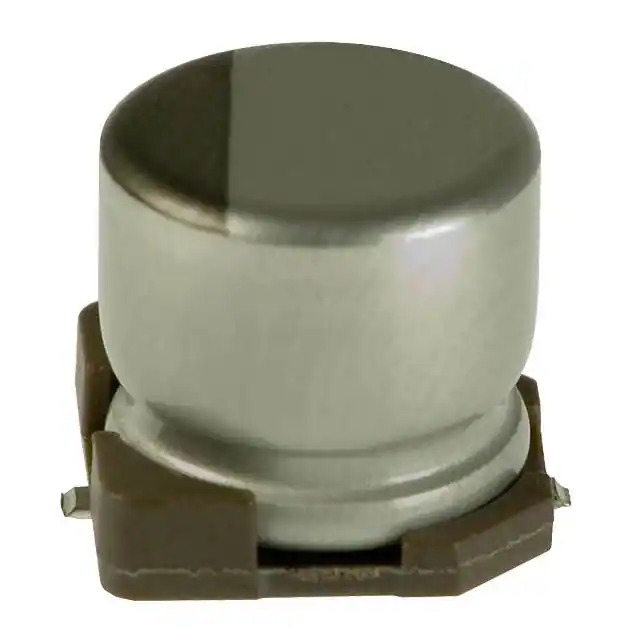

Same model may have multiple batches, images only for reference.

UUD0J151MCL1GS

Name: UUD0J151MCL1GS
Brand: Nichicon
SKU: 1360391
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UUD0J151MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 6.3V SMD / 150 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UUD0J151MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUD
Package	Tape & Reel
Product Status	Active
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	6.3 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	115 mA @ 120 Hz
Ripple Current @ High Frequency	230 mA @ 100 kHz
Impedance	440 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360391-UUD0J151MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUD0J151MCL1GS CAD Model

Description

The UUD0J151MCL1GS is an aluminum electrolytic capacitor from Nichicon's UUD series.

Series: UUD
Mounting Type: Surface Mount
Capacitance: 150 μF
Voltage Rating: 6.3 V
Application: Automotive
Temperature Range: -55°C to 105°C
Ripple Current (Low Frequency): 115 mA @ 120 Hz
Ripple Current (High Frequency): 230 mA @ 100 kHz
Size: 6.30mm diameter
Height: 6.10mm
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Lifetime: 2000 hours @ a temperature of 105°C
REACH: Compliant
ECCN: EAR99
Polarization: Polarized
Polarization Direction: Yes
Impedance: 440 mOhms
