Same model may have multiple batches, images only for reference.

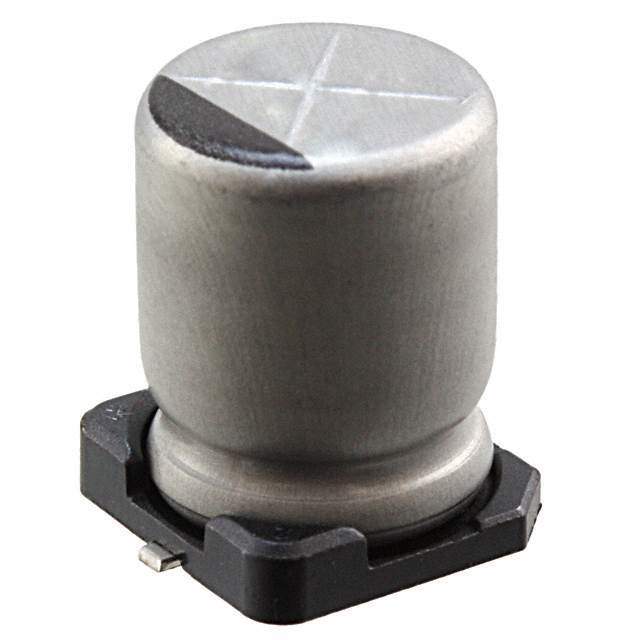

UUA1H470MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUA1H470MNL1GS

Part No UUA1H470MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUA1H470MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUA
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 170 mA @ 120 Hz
Ripple Current @ High Frequency 255 mA @ 10 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1352280-UUA1H470MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUA1H470MNL1GS CAD Model

Description

The Nichicon UUA series aluminum electrolytic capacitors are radial, can - SMD capacitors with a package of tape & reel.

  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Operating Temperature: -55°C ~ 105°C
  • Lifetime @ Temp.: 5000 Hours @ 105°C
  • Packaging: Tape & Reel
  • Standard Package: 500
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Ripple Current @ Low Frequency: 170 mA @ 120 Hz
  • Ripple Current @ High Frequency: 255 mA @ 10 kHz
  • Polarization: Polar
  • Applications: General Purpose
  • Series: UUA
