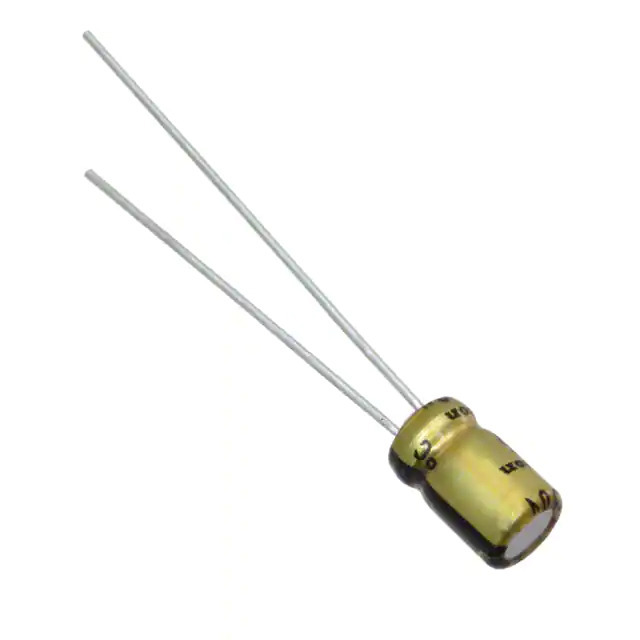

USW1A220MDD Nichicon
Same model may have multiple batches, images only for reference.

USW1A220MDD

Part No USW1A220MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 10V RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series USW
Package Bulk
Product Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications Audio
Ripple Current @ Low Frequency 35 mA @ 120 Hz
Lead Spacing 0.059" (1.50mm)
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1380242-USW1A220MDD
Ultra Librarian 3D Model Ultra Librarian USW1A220MDD CAD Model

Description

The USW1A220MDD is a radial, can-type aluminum electrolytic capacitor from Nichicon's USW series.

  • Capacitance: 22 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Application: Audio
  • Ripple Current (120 Hz): 35 mA
  • Lead Spacing: 0.059" (1.50mm)
  • Size/Dimension: 0.157" Dia (4.00mm)
  • Height: 0.315" (8.00mm)
  • Lifetime: 1000 hours @ 85°C
  • Polarization: Polarized
  • Mounting Type: Through Hole
  • REACH: Unaffected
