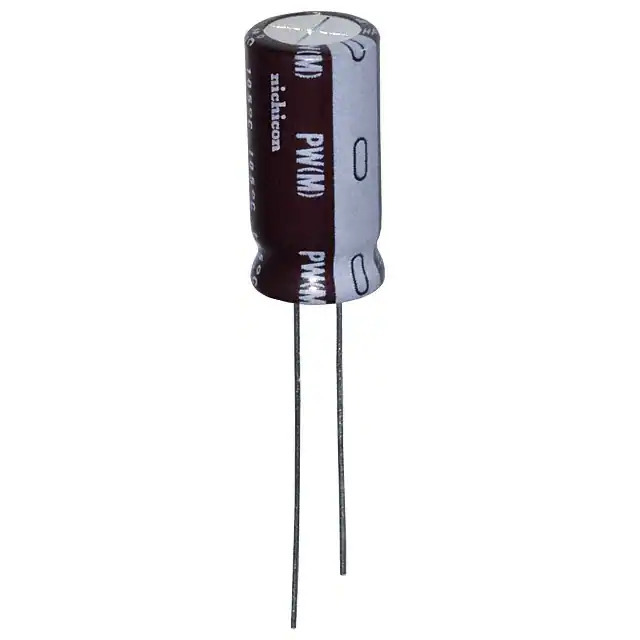

UPW1V331MPD6 Nichicon
Same model may have multiple batches, images only for reference.

UPW1V331MPD6

Part No UPW1V331MPD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 35V RADIAL / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
UPW1V331MPD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 646.75 mA @ 120 Hz
Ripple Current @ High Frequency 995 mA @ 100 kHz
Impedance 65 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357897-UPW1V331MPD6
Ultra Librarian 3D Model Ultra Librarian UPW1V331MPD6 CAD Model

Description

The UPW1V331MPD6 is a radial aluminum electrolytic capacitor from Nichicon.

  • Series: UPW
  • Capacitance: 330 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 646.75 mA @ 120 Hz
  • Ripple Current (High Frequency): 995 mA @ 100 kHz
  • Lead Spacing: 0.138 inches (3.50 mm)
  • Size (Diameter): 0.315 inches (8.00 mm)
  • Size (Height when Seated): 0.787 inches (20.00 mm)
  • Polarization: Polarized
  • Lifetime: 3,000 hours @ 105°C
  • REACH: Unaffected
  • Lifecycle: Not Recommended for New Designs
