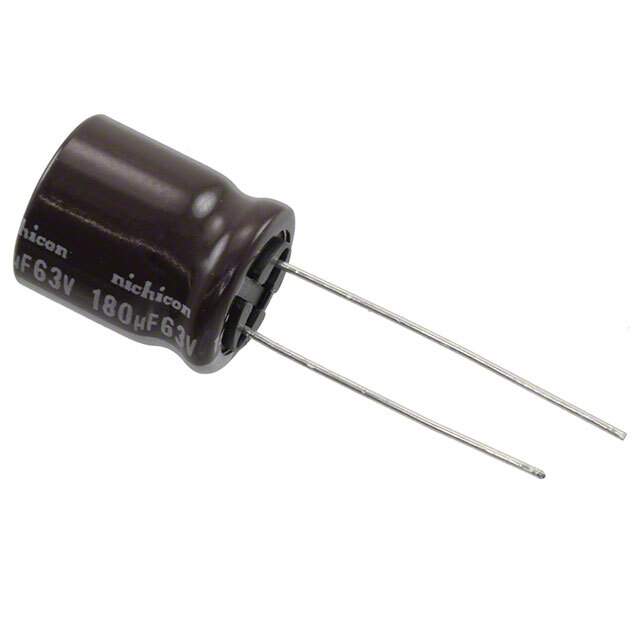

UPW1J181MHD6TO Real Image
Same model may have multiple batches, images only for reference.

UPW1J181MHD6TO

Part No UPW1J181MHD6TO
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 180UF 20% 63V RADIAL / 180 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 663 mA @ 120 Hz
Ripple Current @ High Frequency 1.02 A @ 100 kHz
Impedance 150 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-12046-1,493-12046-3
Standard Package 500
Win Source Part Number 1194261-UPW1J181MHD6TO
Ultra Librarian 3D Model Ultra Librarian UPW1J181MHD6TO CAD Model

Description

The 1194261-UPW1J181MHD6TO is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 180 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Impedance: 150 mOhms
  • Polarized: Yes
  • Lifetime: 7000 Hrs @ 105°C
  • Package: Radial, Can
  • Dimension: 0.492" Dia (12.50mm)
  • Temperature Range: -55°C to 105°C
  • Manufacturer: Nichicon
  • HTSUS Code: 8532.22.0020
  • For New Designs: No
  • Ripple Current (Low Frequency): 663 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.02 A @ 100 kHz
