UPS1V471MPD

Name: UPS1V471MPD
Brand: Nichicon
SKU: 1339937
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPS1V471MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 35V RADIAL / 470 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPS1V471MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPS
Package	Bulk
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	710 mA @ 120 Hz
Ripple Current @ High Frequency	1 A @ 100 kHz
Impedance	110 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,400
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339937-UPS1V471MPD
Ultra Librarian 3D Model	Ultra Librarian UPS1V471MPD CAD Model

Description

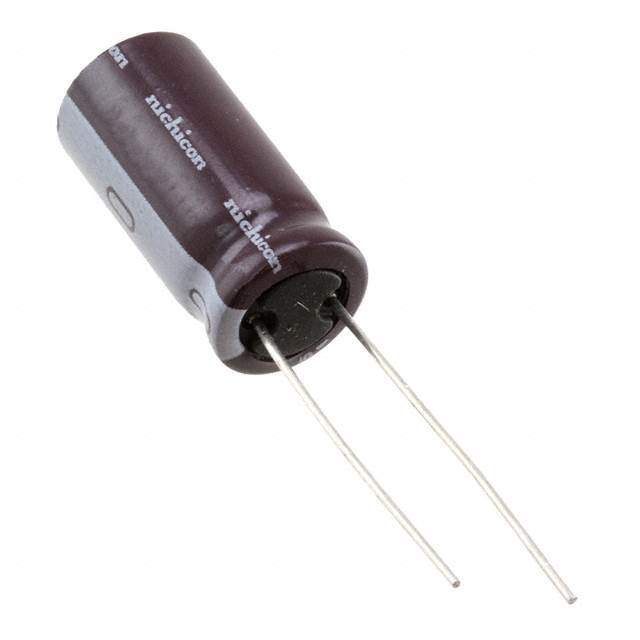

The Nichicon UPS1V471MPD is a radial, can aluminum electrolytic capacitor.

Capacitance: 470 µF
Voltage Rating: 35 V
Tolerance: ±20%
Series: UPS
Application: General Purpose
Impedance: 110 mOhms
Ripple Current: 710 mA @ 120 Hz and 1 A @ 100 kHz
Lead Spacing: 0.197" (5.00mm)
Seated Height: 0.866" (22.00mm)
Polarization: Polarized
Temperature Range: -55°C to 105°C
