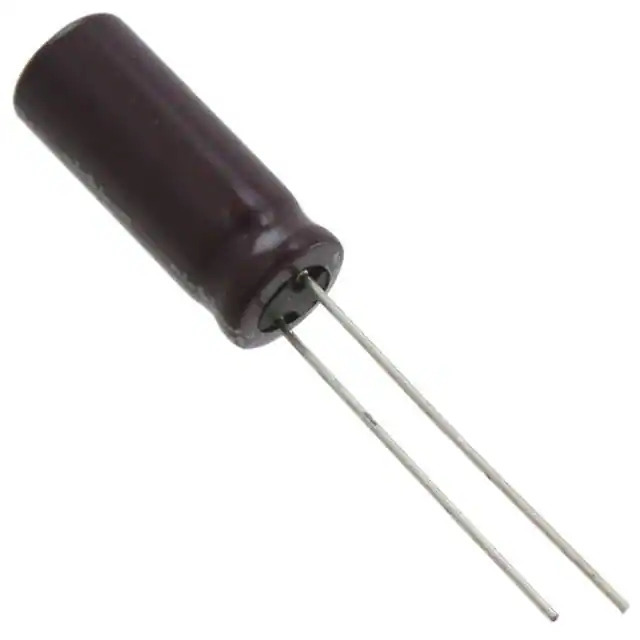

Same model may have multiple batches, images only for reference.

UPM1H101MPD

Name: UPM1H101MPD
Brand: Nichicon
SKU: 1358251
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPM1H101MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet	UPM1H101MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	410 mA @ 120 Hz
Impedance	140 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358251-UPM1H101MPD
Ultra Librarian 3D Model	Ultra Librarian UPM1H101MPD CAD Model

Description

The UPM1H101MPD is a through-hole aluminum electrolytic capacitor from Nichicon's UPM series.

Capacitance: 100 µF
Voltage Rating: 50 V
Application: General-Purpose
Ripple Current: 410 mA @ 120 Hz
Diameter: 0.315"
Height: 0.846"
Lifetime: 3000 Hours @ 105°C
REACH Regulations: Unaffected
Polarity: Polarized
Tolerance: ±20%
Package: Bulk
Mounting Type: Through-Hole
