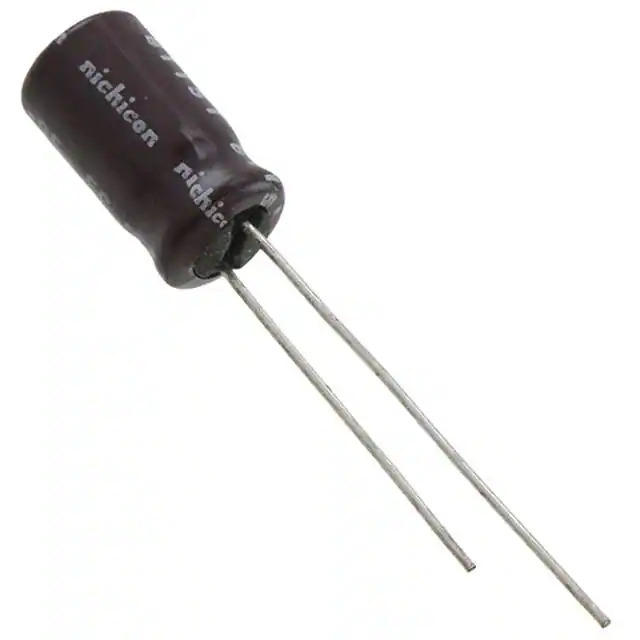

Same model may have multiple batches, images only for reference.

UPM1E470MED

Name: UPM1E470MED
Brand: Nichicon
SKU: 1358213
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1E470MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 25V RADIAL / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPM1E470MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Obsolete
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	125 mA @ 120 Hz
Ripple Current @ High Frequency	210 mA @ 10 kHz
Impedance	550 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358213-UPM1E470MED
Ultra Librarian 3D Model	Ultra Librarian UPM1E470MED CAD Model

Description

The 1358213-UPM1E470MED is an aluminum electrolytic capacitor from Nichicon's UPM series.

Mounting Type: Through-hole
Capacitance: 47 μF
Voltage Rating: 25 V
Tolerance: ±20%
Ripple Current: 125 mA @ low frequency (120 Hz) and 210 mA @ high frequency (10 kHz)
Size: 0.248" diameter and a height of 0.492"
Lifetime: 2000 hours @ 105°C
Lead Spacing: 0.098" (2.50mm)
