Same model may have multiple batches, images only for reference.

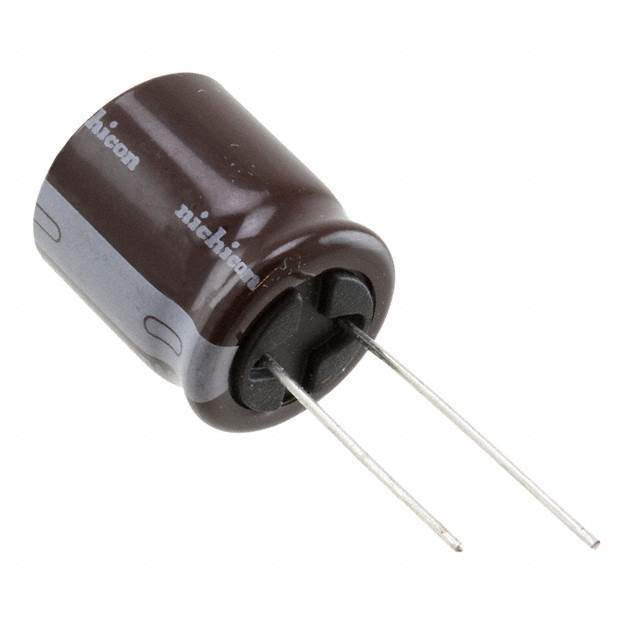

UPA1E332MHD6TN Real Image
Same model may have multiple batches, images only for reference.

UPA1E332MHD6TN

Part No UPA1E332MHD6TN
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 3300UF 20% 25V RADIAL / 3300 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPA
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 3300 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.244 A @ 120 Hz
Ripple Current @ High Frequency 2.64 A @ 100 kHz
Impedance 25 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-4905-1,493-4905-3
Standard Package 250
Win Source Part Number 989948-UPA1E332MHD6TN
Ultra Librarian 3D Model Ultra Librarian UPA1E332MHD6TN CAD Model

Description

The UPA series aluminum electrolytic capacitors are a high-quality option for general-purpose applications.

  • Series: UPA
  • Capacitance: 3300 µF
  • Voltage Rating: 25 V
  • Impedance: 25 mOhms
  • Tolerance: ±20%
  • Polarization: Polarized
  • Mounting Type: Through-hole
  • Package/Case: Radial, can-shaped
  • Diameter: 0.709 inches (18.00mm)
  • Seated Height: 0.866 inches (22.00mm)
  • Ripple Current (Low Frequency): 2.244 A @ 120 Hz
  • Ripple Current (High Frequency): 2.64 A @ 100 kHz
  • Lifetime: 5000 hours @ 105°C
  • ECCN: EAR99
  • Manufacturer: Nichicon
  • Packaging: Cut tape (CT) and tape & box (TB)
