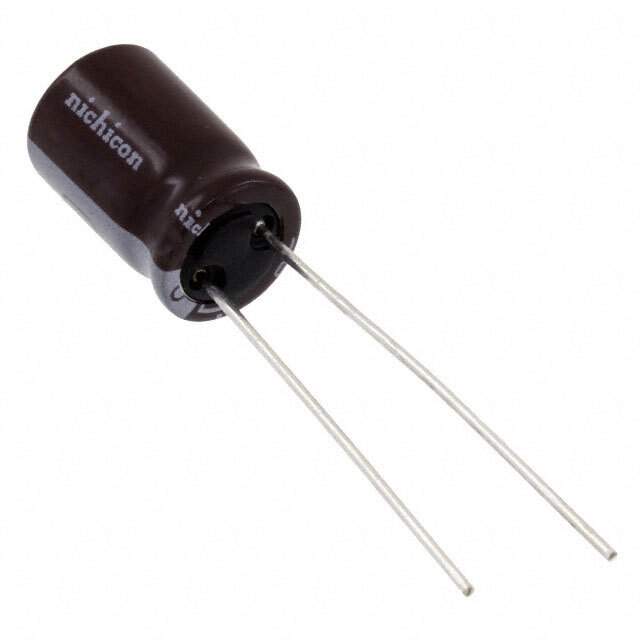

Same model may have multiple batches, images only for reference.

ULD2C150MPD1TD

Name: ULD2C150MPD1TD
Brand: Nichicon
SKU: 1337796
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ULD2C150MPD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 15UF 20% 160V RADIAL / 15 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C
Datasheet	ULD2C150MPD1TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	ULD
Package	Cut Tape (CT) Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	15 µF
Tolerance	±20%
Voltage - Rated	160 V
Lifetime @ Temp.	15000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	92 mA @ 120 Hz
Ripple Current @ High Frequency	174.8 mA @ 100 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.531" (13.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1337796-ULD2C150MPD1TD
Ultra Librarian 3D Model	Ultra Librarian ULD2C150MPD1TD CAD Model

Description

The Nichicon ULD series aluminum electrolytic capacitors are designed for general-purpose applications.

Series: ULD
Capacitance: 15 microfarads
Voltage Rating: 160V
Tolerance: +/- 20%
Temperature Range: -40 to 105 degrees Celsius
Ripple Current @ Low Frequency: 92mA @ 120Hz
Ripple Current @ High Frequency: 174.8mA @ 100kHz
Lifetime @ Temp.: 15000 hours @ 105 degrees Celsius
Package / Case: Radial, Can
Packaging: Cut Tape (CT), Tape & Box (TB)
