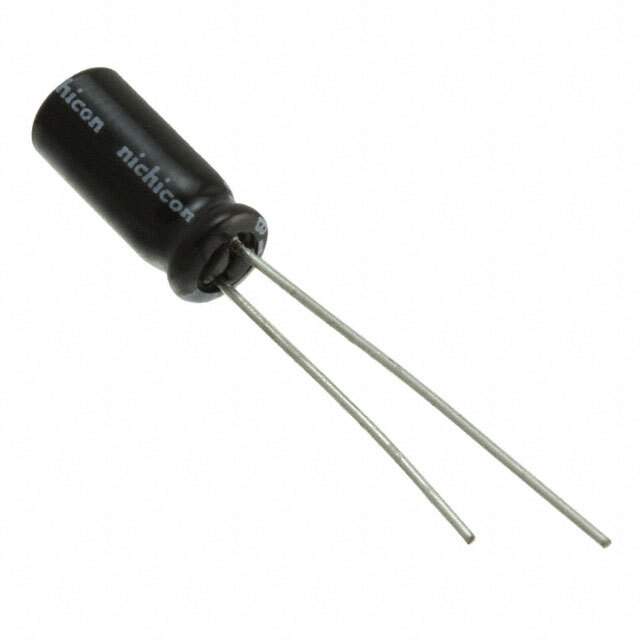

Same model may have multiple batches, images only for reference.

UKL1C220KDDANATA

Name: UKL1C220KDDANATA
Brand: Nichicon
SKU: 387509
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UKL1C220KDDANATA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 16V RADIAL
Datasheet	UKL1C220KDDANATA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	AMMO PACKAGE
Status	Active
Capacitance	22μF
Tolerance	±20%
Voltage Rating	16V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C to 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	85mA @ 120Hz
Ripple Current - High Frequency	170mA @ 10kHz
Lead Spacing	0.079" (2.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting	Through Hole
Dimension	Radial, Can
Win Source Part Number	121655-UKL1C220KDDANATA
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UKL1C220KDDANATA CAD Model

Description

The Nichicon Capacitors are general-purpose capacitors that offer high capacitance and a voltage rating of 16V.

Capacitance: 22μF
Tolerance: ±20%
Ripple Current: low frequency is 85mA @ 120Hz
Ripple Current: high frequency is 170mA @ 10kHz
