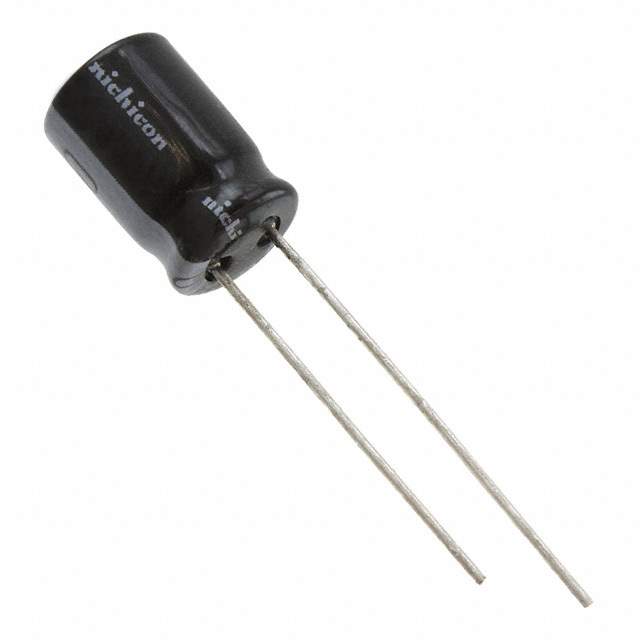

Same model may have multiple batches, images only for reference.

UHV1V221MPD1TD

Name: UHV1V221MPD1TD
Brand: Nichicon
SKU: 1328652
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UHV1V221MPD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 35V RADIAL / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Nichicon
Packaging	Cut Tape (CT),Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	6000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	495 mA @ 120 Hz
Ripple Current @ High Frequency	990 mA @ 100 kHz
Impedance	59 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	UHV1V221MPD1TD-ND,493-17634-1,493-17634-3
Standard Package	1,000
Win Source Part Number	1328652-UHV1V221MPD1TD
Ultra Librarian 3D Model	Ultra Librarian UHV1V221MPD1TD CAD Model

Description

The Nichicon UHV1V221MPD1TD is an aluminum electrolytic capacitor that is used in electronic components for general purpose applications.

Manufacturer: Nichicon
Type: Aluminum Electrolytic Capacitor
Application: General Purpose
Status: Not for new designs
ROHS3: Compliant
Type: Radial Can
Capacitance: 220µF
Voltage Rating: 35V
Tolerance: ±20%
Impedance: 59mOhms
Ripple Current: 495mA @ 120Hz and 990mA @ 100kHz
