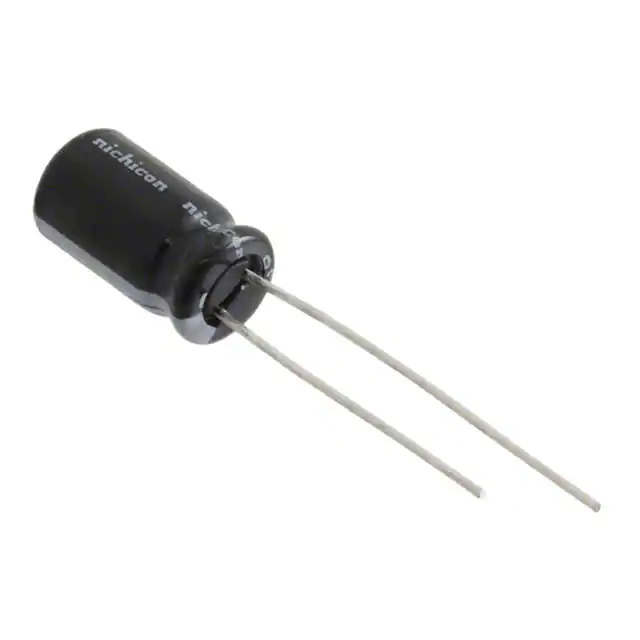

Same model may have multiple batches, images only for reference.

UHV1E151MED

Name: UHV1E151MED
Brand: Nichicon
SKU: 1357895
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHV1E151MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 25V RADIAL / 150 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UHV1E151MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHV
Package	Bulk
Product Status	Obsolete
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	220 mA @ 120 Hz
Ripple Current @ High Frequency	550 mA @ 100 kHz
Impedance	100 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357895-UHV1E151MED
Ultra Librarian 3D Model	Ultra Librarian UHV1E151MED CAD Model

Description

The UHV series aluminum electrolytic capacitor by Nichicon is a high-quality component designed for general-purpose applications.

Capacitance: 150 μF
Voltage Rating: 25 V
Application: General-Purpose
Operating Temperature: -40°C to 105°C
Tolerance: ±20%
Ripple Current (Low Frequency): 220 mA @ 120 Hz
Ripple Current (High Frequency): 550 mA @ 100 kHz
Size (Diameter): 0.248" (6.30mm)
Seated Height: 0.433" (11.00mm)
Mounting Type: Through-Hole
Lead Spacing: 0.098" (2.50mm)
Lifetime: 5000 hours @ 105°C
Product Status: Obsolete
