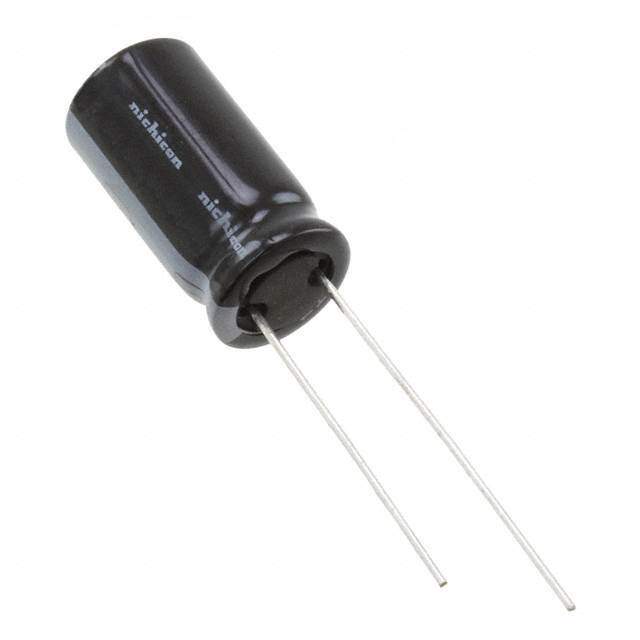

Same model may have multiple batches, images only for reference.

UHE2A560MPD

Name: UHE2A560MPD
Brand: Nichicon
SKU: 1351875
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHE2A560MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 56UF 20% 100V RADIAL / 56 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet	UHE2A560MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Not For New Designs
Capacitance	56 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	285.6 mA @ 120 Hz
Ripple Current @ High Frequency	408 mA @ 100 kHz
Impedance	330 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1351875-UHE2A560MPD
Ultra Librarian 3D Model	Ultra Librarian UHE2A560MPD CAD Model

Description

The UHE2A560MPD capacitor is a part of the UHE series of aluminum electrolytic capacitors.

Capacitance: 56 µF
Voltage Rating: 100 V
Tolerance: ±20%
Impedance: 330 mOhms
ESR (Equivalent Series Resistance): Not specified
Height: 20.00mm
Diameter: 8.00mm
Polarization: Polarized
Package: Radial, can-shaped
Application: General purpose
Lifetime: 7000 hours @ 105°C
