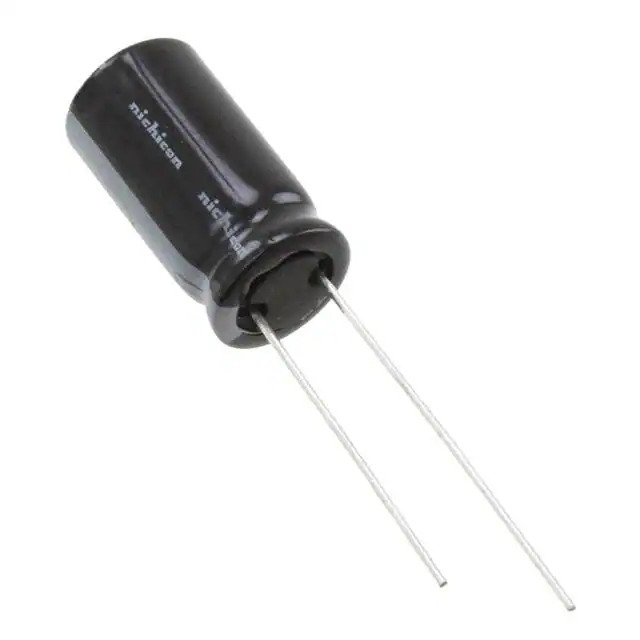

UHE1H181MPD Nichicon
Same model may have multiple batches, images only for reference.

UHE1H181MPD

Part No UHE1H181MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 180UF 20% 50V RADIAL / 180 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet
UHE1H181MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 637 mA @ 120 Hz
Ripple Current @ High Frequency 910 mA @ 100 kHz
Impedance 91 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358269-UHE1H181MPD
Ultra Librarian 3D Model Ultra Librarian UHE1H181MPD CAD Model

Description

The UHE1H181MPD is an aluminum electrolytic capacitor from Nichicon's UHE series, manufactured by Nichicon.

  • Capacitance: 180 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 637 mA @ 120 Hz
  • Ripple Current (High Frequency): 910 mA @ 100 kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Polarization: Polarized
  • Height: 0.787" (20.00mm)
  • Mounting Type: Through Hole
  • Lifetime: 7,000 Hrs @ 105°C
  • Status: Not For New Designs
  • REACH: Unaffected
