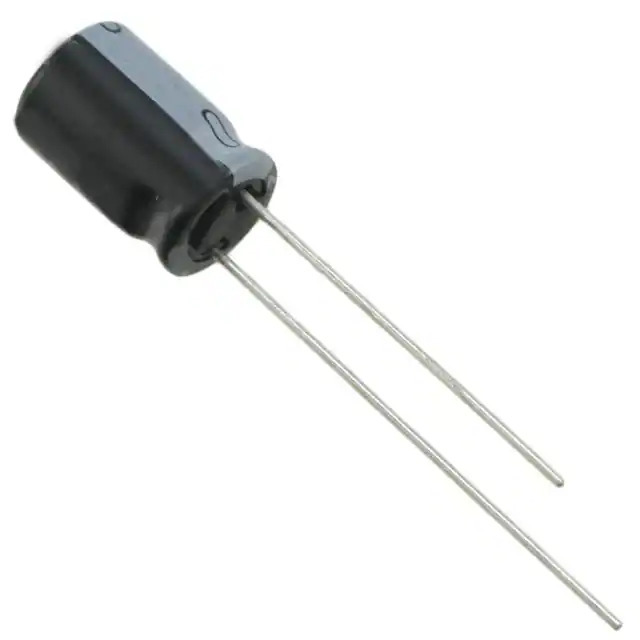

Same model may have multiple batches, images only for reference.
UHE1E221MPD Nichicon
Same model may have multiple batches, images only for reference.

UHE1E221MPD

Part No UHE1E221MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 25V RADIAL / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet
UHE1E221MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 448 mA @ 120 Hz
Impedance 130 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357898-UHE1E221MPD
Ultra Librarian 3D Model Ultra Librarian UHE1E221MPD CAD Model

Description

The 1357898-UHE1E221MPD is an aluminum electrolytic capacitor from Nichicon's UHE series. It is a through-hole component with a capacitance of 220 μF and a voltage rating of 25 V.

  • Capacitance: 220 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Application: General-Purpose
  • Ripple Current: 448 mA @ low frequency (120 Hz)
  • Size: 0.315" diameter and a height of 0.453"
  • Lifetime: 7000 hours @ 105°C
  • Status: Not for new designs
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • ESR: Not specified
  • Lead Spacing: Not specified
  • Polarized: Yes
  • Impedance: 130 mOhms
