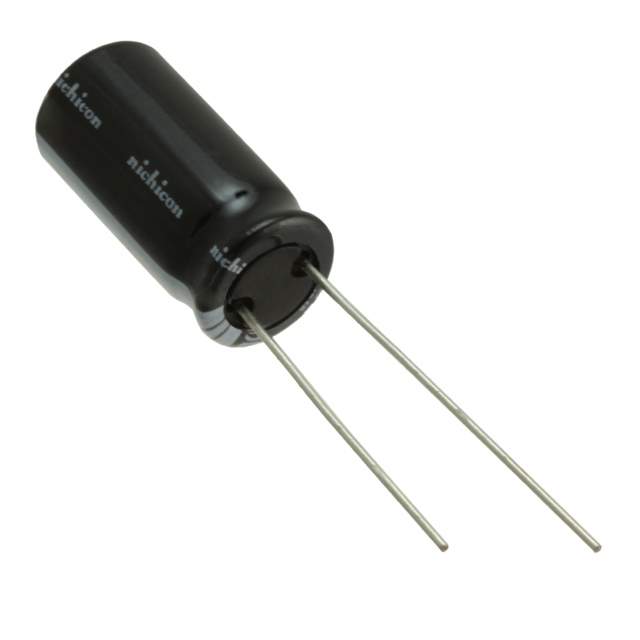

Same model may have multiple batches, images only for reference.

UHD1C471MPD6TD

Name: UHD1C471MPD6TD
Brand: Nichicon
SKU: 1338800
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHD1C471MPD6TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 16V RADIAL / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Datasheet	UHD1C471MPD6TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHD
Package	Cut Tape (CT) Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	4000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	772.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.03 A @ 100 kHz
Impedance	53 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1338800-UHD1C471MPD6TD
Ultra Librarian 3D Model	Ultra Librarian UHD1C471MPD6TD CAD Model

Description

The Nichicon 1338800-UHD1C471MPD6TD is an aluminum electrolytic capacitor with a capacitance of 470 µF and a voltage rating of 16 V.

Manufacturer: Nichicon
Capacitance: 470 µF
Voltage Rating: 16 V
Tolerance: ±20%
Impedance: 53 mOhms
Ripple Current: 772.5 mA @ 120 Hz, 1.03 A @ 100 kHz
Lifetime: 4000 Hrs @ 105°C
Polarization: Polar
Mounting Type: Through-Hole
Package: Radial Can
ECCN: EAR99
REACH: Unaffected
Standard Package Quantity: 500
