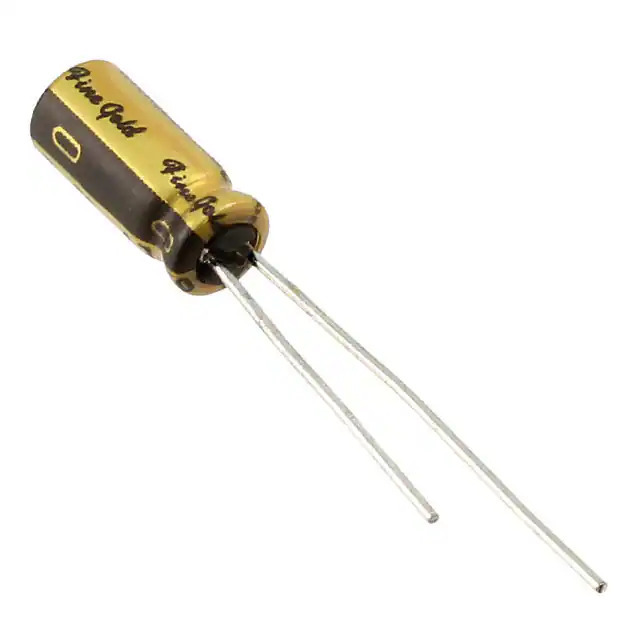

Same model may have multiple batches, images only for reference.

UFG1E220MDM

Name: UFG1E220MDM
Brand: Nichicon
SKU: 1357145
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UFG1E220MDM
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 25V RADIAL / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Datasheet	UFG1E220MDM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UFG
Package	Bulk
Product Status	Obsolete
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	50 mA @ 120 Hz
Ripple Current @ High Frequency	100 mA @ 10 kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357145-UFG1E220MDM
Ultra Librarian 3D Model	Ultra Librarian UFG1E220MDM CAD Model

Description

The UFG1E220MDM is a radial, can aluminum electrolytic capacitor from Nichicon.

Capacitance: 22 µF
Voltage - Rated: 25 V
Application: Audio
Operating Temperature: -40°C ~ 85°C
Tolerance: ±20%
Ripple Current @ Low Frequency: 50 mA @ 120 Hz
Ripple Current @ High Frequency: 100 mA @ 10 kHz
Series: UFG
Lead Spacing: 0.079" (2.00mm)
Size / Dimension: 0.197" Dia (5.00mm)
Height - Seated (Max): 0.492" (12.50mm)
Mounting Type: Through Hole
Package: Bulk
Lifetime @ Temp.: 1000 Hrs @ 85°C
Status: Obsolete
REACH: Unaffected
