Same model may have multiple batches, images only for reference.

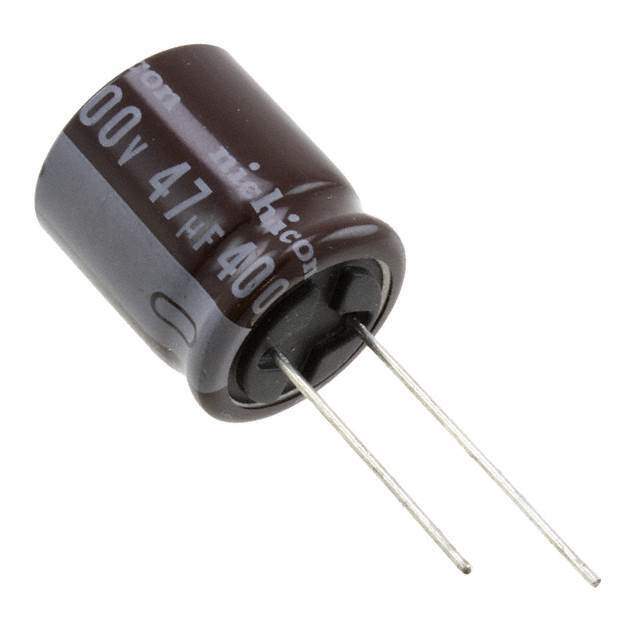

UCS2G470MHD6TN Real Image
Same model may have multiple batches, images only for reference.

UCS2G470MHD6TN

Part No UCS2G470MHD6TN
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 400V RADIAL / 47 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCS
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 590 mA @ 120 Hz
Ripple Current @ High Frequency 1.18 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-4748-3,493-4748-1
Standard Package 250
Win Source Part Number 1130522-UCS2G470MHD6TN
Ultra Librarian 3D Model Ultra Librarian UCS2G470MHD6TN CAD Model

Description

The UCS series aluminum electrolytic capacitor is a high-performance capacitor from Nichicon that is suitable for general purpose applications.

  • Capacitance: 47 μF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • ESR: Not specified
  • Design: Polarized
  • Mounting: Through Hole
  • Package/Case: Radial, Can-Shaped
  • Diameter: 0.709 inches (18.00 mm)
  • Height Seated: 0.846 inches (21.50 mm)
  • Lifetime: 10,000 hours @ 105°C
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • Ripple Current (Low Frequency): 590 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.18 A @ 100 kHz
  • Package Options: Cut Tape (CT) and Tape & Box (TB)
  • Standard Package: 250 capacitors
