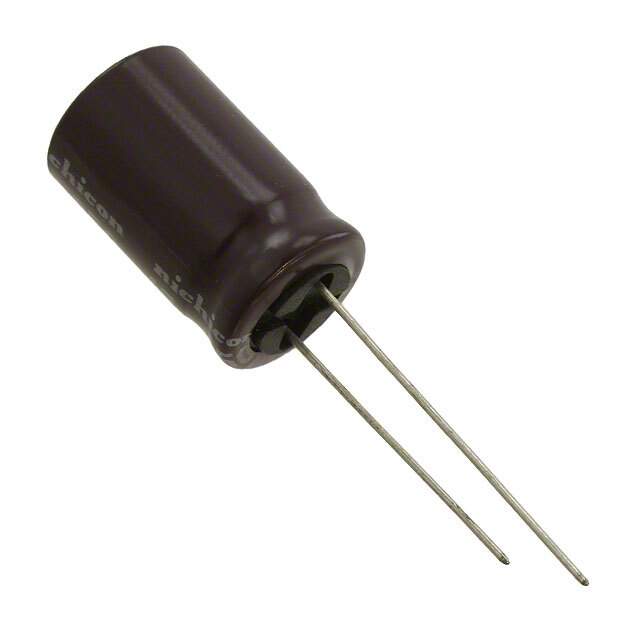

UCS2E470MHD Real Image
Same model may have multiple batches, images only for reference.

UCS2E470MHD

Part No UCS2E470MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 250V RADIAL / 47 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 250 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 490 mA @ 120 Hz
Ripple Current @ High Frequency 980 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-5873
Standard Package 1,000
Win Source Part Number 1330938-UCS2E470MHD
Ultra Librarian 3D Model Ultra Librarian UCS2E470MHD CAD Model

Description

The UCS2E470MHD is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Packaging: Bulk
  • Size/Dimension: 0.492” Dia (12.50mm)
  • Application: General Purposes
  • Height-Seated (Max): 0.846” (21.50mm)
  • Standard Package: 1,000
  • Mounting: Through-Hole
  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Voltage-Rated: 250 V
  • Lead Spacing: 0.197” (5.00mm)
  • ESR: Not Applicable
  • Lifetime @ Temperature: 10000 Hrs @ 105°C
  • Polarization: Polarized
  • Operating Temperature: -40°C ~ 105°C
  • Case/Package: Radial, Can
  • MSL Level: Not Applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.22.0020
  • Other Part Number: 493-5873
  • ROHS3 Compliant: Yes
  • Ripple Current @ Low Frequency: 490 mA @ 120 Hz
  • Ripple Current @ High Frequency: 980 mA @ 100 kHz
