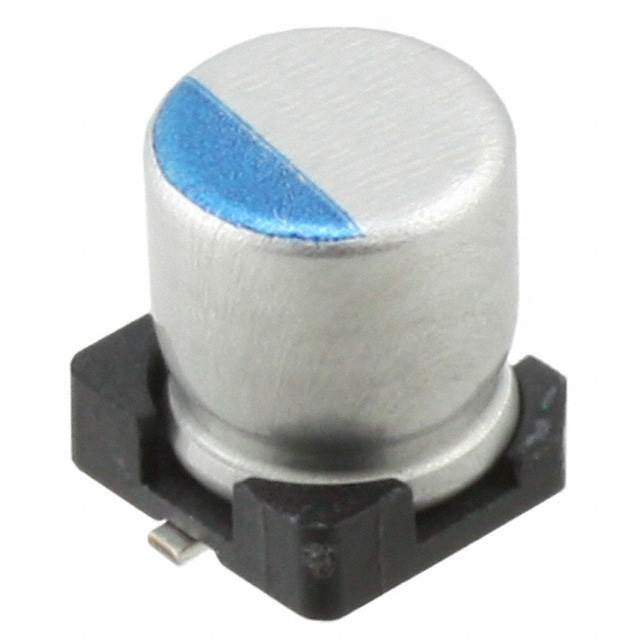

UCL1E471MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCL1E471MNL1GS

Part No UCL1E471MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCL
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 595 mA @ 120 Hz
Ripple Current @ High Frequency 1.19 A @ 100 kHz
Impedance 60 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 493-3944-6,493-3944-2,493-3944-1,Q10279029AD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307344-UCL1E471MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCL1E471MNL1GS CAD Model

Description

The Nichicon UCL1E471MNL1GS is an aluminum electrolytic capacitor with a capacitance of 470 µF and a voltage rating of 25 V.

  • Capacitance: 470 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Impedance: 60 mOhms
  • Polarized: Yes
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Series: UCL
  • Application: General-purpose
  • Standard Package: 500
  • Lifetime: 2000 hrs @ 105°C
  • Package/Case: Radial, can - SMD
  • Temperature Range: -55°C ~ 105°C
  • Manufacturer: Nichicon
  • Ripple Current (Low Frequency): 595 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.19 A @ 100 kHz
