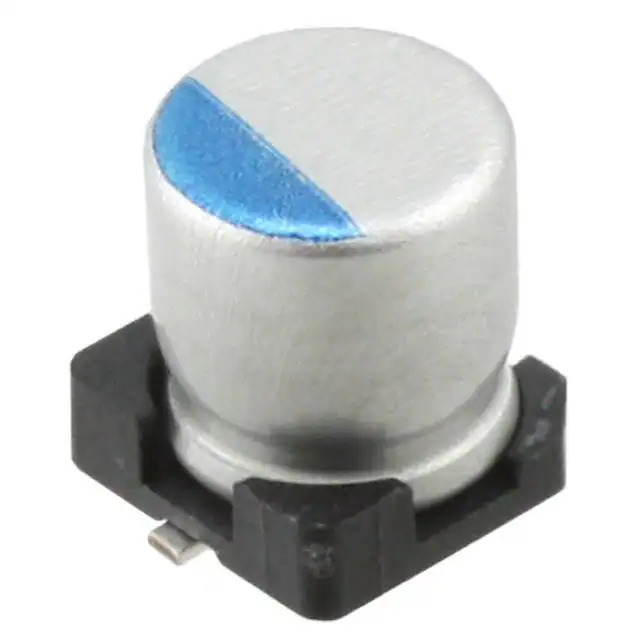

Same model may have multiple batches, images only for reference.

UCL1E221MCL6GS

Name: UCL1E221MCL6GS
Brand: Nichicon
SKU: 1360337
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCL1E221MCL6GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 25V SMD / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCL1E221MCL6GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCL
Package	Tape & Reel
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	425 mA @ 120 Hz
Ripple Current @ High Frequency	850 mA @ 100 kHz
Impedance	100 mOhms
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360337-UCL1E221MCL6GS
Ultra Librarian 3D Model	Ultra Librarian UCL1E221MCL6GS CAD Model

Description

The UCL1E221MCL6GS is an aluminum electrolytic capacitor that belongs to the UCL series from Nichicon.

Manufacturer: Nichicon
Product Name: UCL1E221MCL6GS
Series: UCL
Temperature Range: -55°C to 105°C
Capacitance: 220μF
Tolerance: ±20%
Rated Voltage: 25V
Impedance: 100mΩ
Ripple Current (Low Frequency): 425mA @ 120Hz
Ripple Current (High Frequency): 850mA @ 100kHz
Mounting Type: Surface Mountable
Package: Radial, Can - SMD
