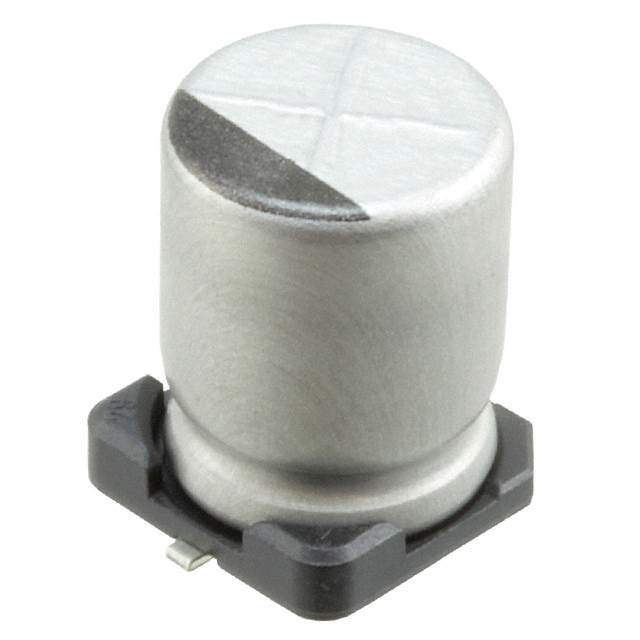

UCD2A220MNL1GS

Name: UCD2A220MNL1GS
Brand: Nichicon
SKU: 1307347
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCD2A220MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	65 mA @ 120 Hz
Ripple Current @ High Frequency	130 mA @ 100 kHz
Impedance	1.3 Ohms
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Other Names	493-6433-6,493-6433-2,493-6433-1,UCD2A220MNL1GS
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307347-UCD2A220MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD2A220MNL1GS CAD Model

Description

The Nichicon UCD2A220MNL1GS is a 22 µF, 100 V, polarized aluminum electrolytic capacitor.

Capacitance: 22 µF
Voltage Rating: 100 V
Polarized: Yes
Tolerance: ±20%
Standard Package: 500
Series: UCD
Seated Height: 0.413" (10.50mm)
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Application: Automotive
Lifetime: 2000 hours @ 105°C
Package: Radial, can - SMD
Mounting Type: SMD (SMT)
Impedance: 1.3 Ohms
Ripple Current (Low Frequency): 65 mA @ 120 Hz
Ripple Current (High Frequency): 130 mA @ 100 kHz
