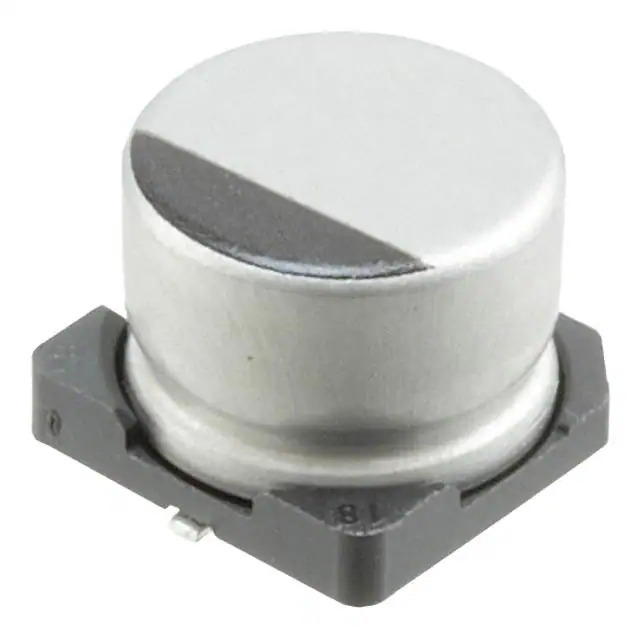

Same model may have multiple batches, images only for reference.

UCD1K100MCL6GS

Get a Quote

Part No	UCD1K100MCL6GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 80V SMD / 10 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1K100MCL6GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Active
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	30 mA @ 120 Hz
Ripple Current @ High Frequency	60 mA @ 100 kHz
Impedance	2.4 Ohms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360271-UCD1K100MCL6GS
Ultra Librarian 3D Model	Ultra Librarian UCD1K100MCL6GS CAD Model

Description

The UCD1K100MCL6GS is a surface mount aluminum electrolytic capacitor from Nichicon's UCD series.

Capacitance: 10 µF
Voltage Rating: 80 V
Application: Automotive
Ripple Current (Low Frequency): 30 mA @ 120 Hz
Ripple Current (High Frequency): 60 mA @ 100 kHz
Size: 0.315" diameter and a height of 0.256"
Lifetime: 2000 hours @ 105°C
AEC-Q200: Yes
Packaging: Tape and reel
Mounting: Surface mountable
Polarized: Yes
Tolerance: ±20%
ESR: Low
REACH: Unaffected
