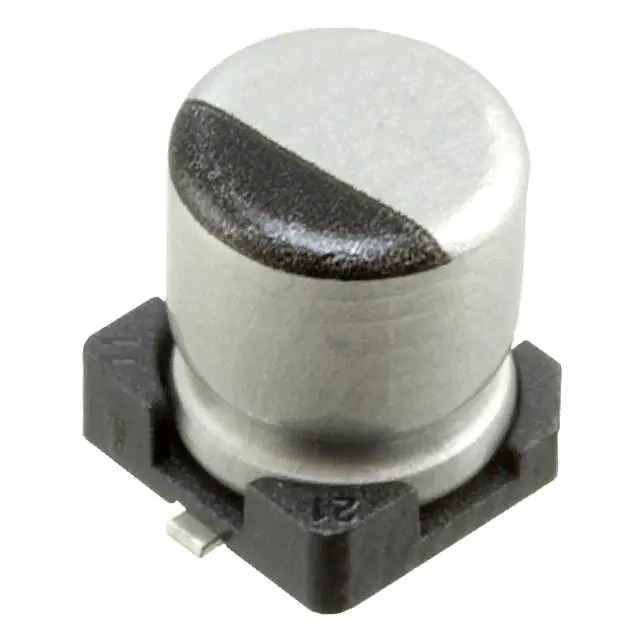

Same model may have multiple batches, images only for reference.

UCD1J4R7MCL1GS

Name: UCD1J4R7MCL1GS
Brand: Nichicon
SKU: 1360169
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1J4R7MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 63V SMD / 4.7 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1J4R7MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Active
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	25 mA @ 120 Hz
Ripple Current @ High Frequency	50 mA @ 100 kHz
Impedance	3 Ohms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360169-UCD1J4R7MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1J4R7MCL1GS CAD Model

Description

The UCD1J4R7MCL1GS is an aluminum electrolytic capacitor from Nichicon's UCD series.

Capacitance: 4.7 μF
Voltage - Rated: 63 V
Tolerance: ±20%
Application: Automotive
Ripple Current @ Low Frequency: 25 mA @ 120 Hz
Ripple Current @ High Frequency: 50 mA @ 100 kHz
Package: Tape & Reel (TR)
Mounting Type: Surface Mount
Size / Dimension: 0.197" Dia (5.00mm)
Height - Seated (Max): 0.240" (6.10mm)
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Lifetime @ Temp.: 2000 Hrs @ 105°C
REACH Status: Unaffected
ECCN: EAR99
Status: Active
AEC-Q200: Yes
