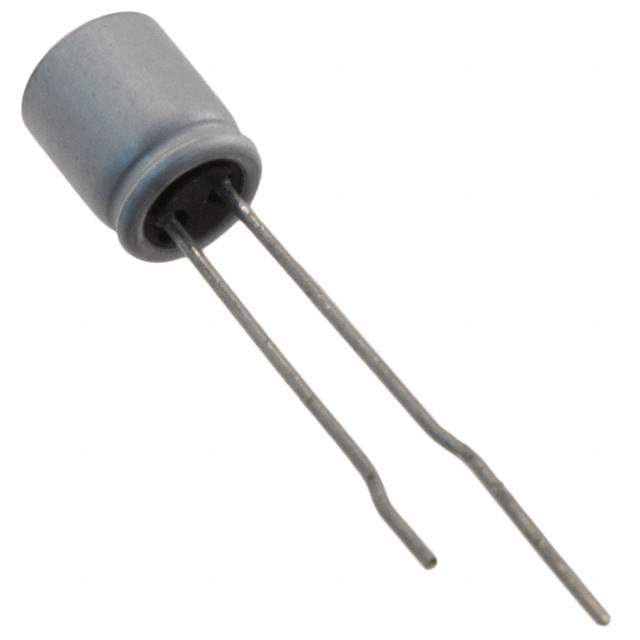

RS80J561MDN1JT Real Image
Same model may have multiple batches, images only for reference.

RS80J561MDN1JT

Part No RS80J561MDN1JT
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 6.3V T/H / 560 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Nichicon
Packaging Cut Tape (CT),Tape & Box (TB)
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 8mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 500 mA @ 120 Hz
Ripple Current @ High Frequency 5 A @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-4042-1,493-4042-3
Standard Package 2,000
Win Source Part Number 1330093-RS80J561MDN1JT
Ultra Librarian 3D Model Ultra Librarian RS80J561MDN1JT CAD Model

Description

The Nichicon RS80J561MDN1JT is an aluminum-polymer capacitor with a capacitance of 560 µF and a voltage rating of 6.3V.

  • Tolerance: ±20%
  • ESR: 8mOhm
  • Mounting: Through-Hole Mountable
  • Size: 0.248" Dia (6.30mm)
  • Packaging: Cut Tape or Tape & Box
  • Pieces: 2,000
  • Application: General-Purpose
  • Operating Temperature Range: -55°C to 105°C
  • ROHS3 Compliant: Yes
