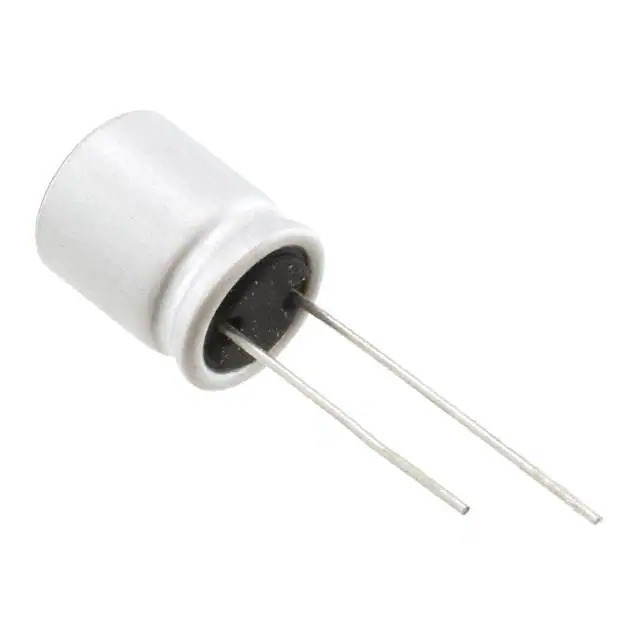

Same model may have multiple batches, images only for reference.

RNS1E101MDN1PH

Name: RNS1E101MDN1PH
Brand: Nichicon
SKU: 1359522
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RNS1E101MDN1PH
Manufacturer	Nichicon
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 100UF 20% 25V T/H / 100 µF 25 V Aluminum - Polymer Capacitors Radial, Can 15mOhm 2000 Hrs @ 105°C
Datasheet	RNS1E101MDN1PH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Nichicon
Series	FPCAP, RNS
Product Status	Active
Type	Polymer
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	450 mA @ 120 Hz
Ripple Current @ High Frequency	4.5 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359522-RNS1E101MDN1PH
Ultra Librarian 3D Model	Ultra Librarian RNS1E101MDN1PH CAD Model

Description

The RNS1E101MDN1PH is a through-hole aluminum polymer capacitor from Nichicon's FPCAP RNS series. It has a capacitance of 100 µF and a voltage rating of 25 V.

Capacitance: 100 µF
Voltage Rating: 25 V
Application: General-purpose
Ripple Current (Low Frequency): 450 mA @ 120 Hz
Ripple Current (High Frequency): 4.5 A @ 100 kHz
Diameter: 0.394"
Height: 0.551"
Lifetime: 2000 hours @ 105°C
ESR: 15 mOhm
Polarized: Yes
Tolerance: ±20%
REACH: Unaffected
ECCN: EAR99
