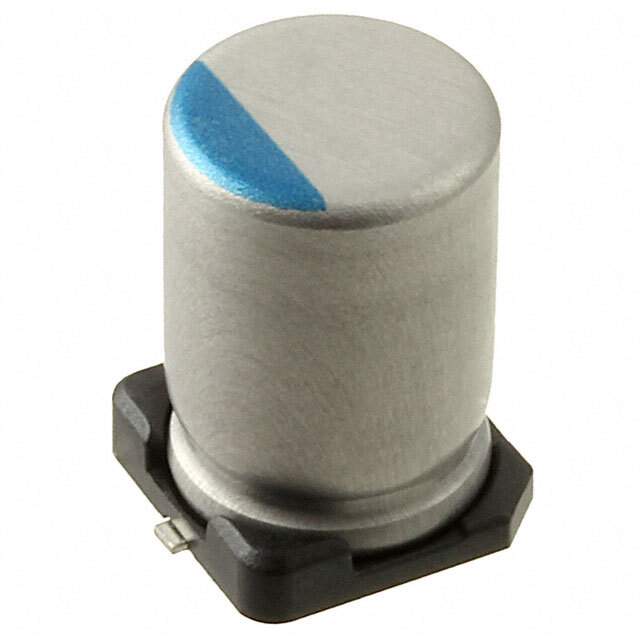

PCR1J390MCL1GS Real Image
Same model may have multiple batches, images only for reference.

PCR1J390MCL1GS

Part No PCR1J390MCL1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 39UF 20% 63V SMD / 39 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 4000 Hrs @ 125°C
Datasheet
PCR1J390MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Nichicon
Series PCR
Package Tape & Reel
Type Polymer
Capacitance 39 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 28mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 2.7 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340947-PCR1J390MCL1GS
Ultra Librarian 3D Model Ultra Librarian PCR1J390MCL1GS CAD Model

Description

The Nichicon PCR1J390MCL1GS is a polymer capacitor with a capacitance of 39 µF and a voltage rating of 63 V. Nichicon produces this capacitor.

  • Capacitance: 39 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • ESR: 28mOhm
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can-SMD
  • Size/Dimension: 0.315" Dia (8.00mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Application: Automotive
  • Lifetime: 4000 hours @ 125°C
  • Series: PCR
  • AEC-Q200 Qualified: Yes
  • Ripple Current: 2.7 A @ 100 kHz
