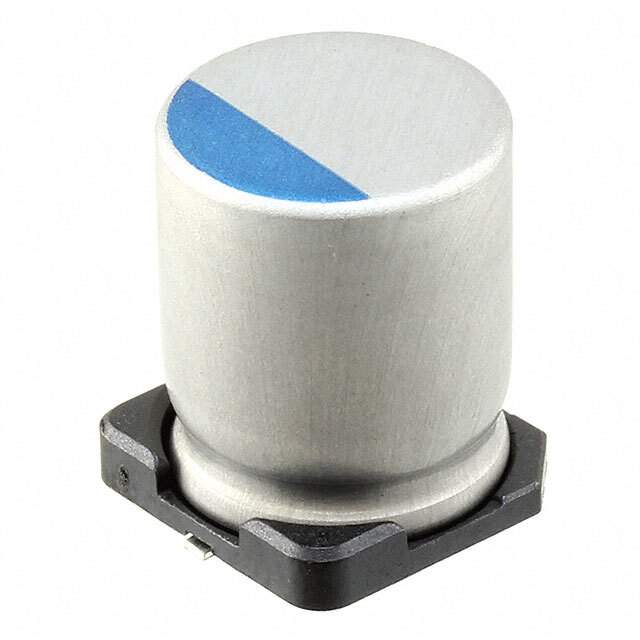

PCR1H181MCL1GS Real Image
Same model may have multiple batches, images only for reference.

PCR1H181MCL1GS

Part No PCR1H181MCL1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 50V SMD / 180 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 19mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 19mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 3.5 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-13774-6,493-13774-2,493-13774-1
Standard Package 400
Win Source Part Number 1328523-PCR1H181MCL1GS
Ultra Librarian 3D Model Ultra Librarian PCR1H181MCL1GS CAD Model

Description

The PCR1H181MCL1GS is a polymer aluminum capacitor manufactured by Nichicon.

  • Capacitance: 180 µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • ESR (Equivalent Series Resistance): 19mOhm
  • Ripple Current: 3.5 A @ 100 kHz
  • AEC-Q200 Rated: Yes
  • Lifetime: 4000 Hrs @ 125°C
  • Temperature Range: -55°C ~ 125°C
  • ROHS3 Compliant: Yes
