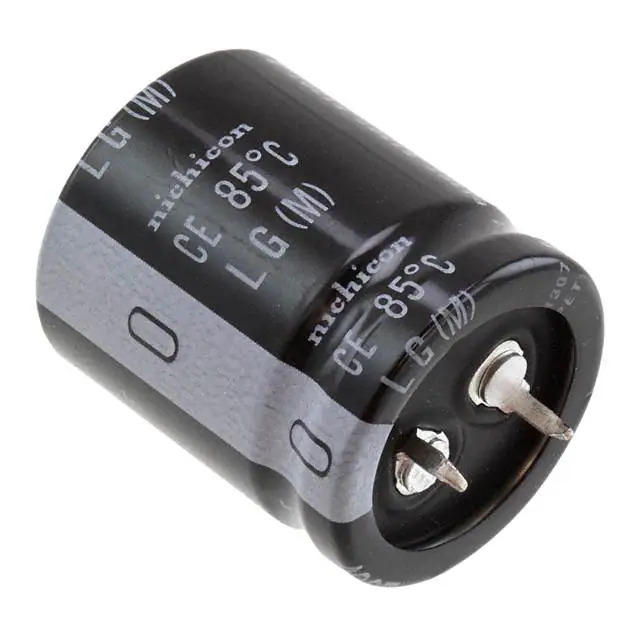

Same model may have multiple batches, images only for reference.

LLG2C102MELA30

Name: LLG2C102MELA30
Brand: Nichicon
SKU: 1360799
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LLG2C102MELA30
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 160V SNAP / 1000 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Datasheet	LLG2C102MELA30 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLG
Package	Bulk
Product Status	Active
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	160 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3 A @ 120 Hz
Ripple Current @ High Frequency	4.5 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360799-LLG2C102MELA30
Ultra Librarian 3D Model	Ultra Librarian LLG2C102MELA30 CAD Model

Description

The LLG series aluminum electrolytic capacitor from Nichicon is a high-quality component designed for general-purpose applications.

Capacitance: 1000 μF
Voltage Rating: 160 V
Tolerance: ±20%
Lifetime: 2000 hours @ 85°C
Mounting Type: Through-hole
Size: 0.984" diameter
Height: 1.260"
Ripple Current (Low Frequency): 3 A @ 120 Hz
Ripple Current (High Frequency): 4.5 A @ 50 kHz
Product Status: Active
Polarized: Yes
