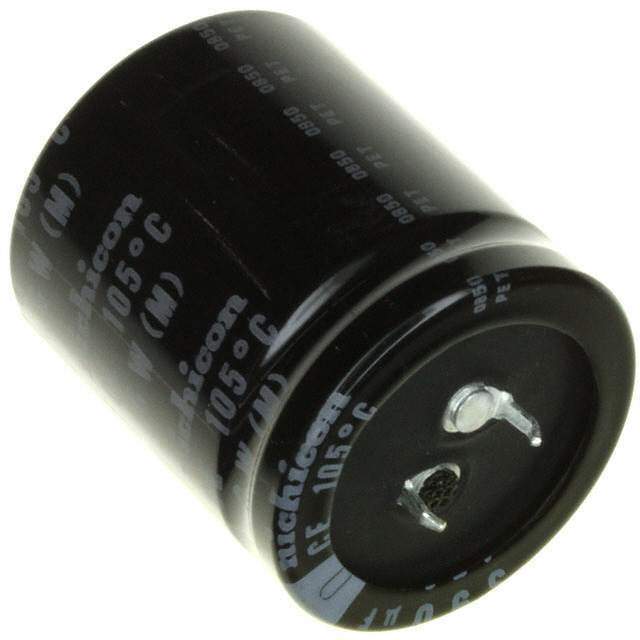

LGW2W471MELC45 Real Image
Same model may have multiple batches, images only for reference.

LGW2W471MELC45

Part No LGW2W471MELC45
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 450V SNAP / 470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGW2W471MELC45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGW
Package Tray
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.67 A @ 120 Hz
Ripple Current @ High Frequency 3.8181 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1351265-LGW2W471MELC45
Ultra Librarian 3D Model Ultra Librarian LGW2W471MELC45 CAD Model

Description

The Nichicon LGW2W471MELC45 is an aluminum electrolytic capacitor product from Nichicon.

  • Standard Package: 200
  • Package/Case: radial, can - snap-in
  • Rated Voltage: 450V
  • Capacitance: 470µF
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±20%
