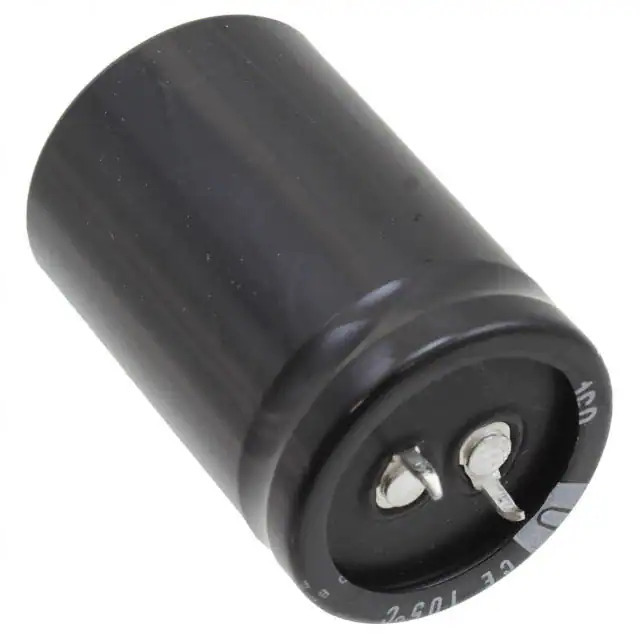

Same model may have multiple batches, images only for reference.

LGU2W221MELA

Name: LGU2W221MELA
Brand: Nichicon
SKU: 1360801
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LGU2W221MELA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 450V SNAP / 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGU2W221MELA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGU
Package	Bulk
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.12 A @ 120 Hz
Ripple Current @ High Frequency	1.6016 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360801-LGU2W221MELA
Ultra Librarian 3D Model	Ultra Librarian LGU2W221MELA CAD Model

Description

The LGU series aluminum electrolytic capacitor from Nichicon is a high-quality component designed for general-purpose applications.

Capacitance: 220µF
Voltage Rating: 450V
Tolerance: ±20%
Lifetime: 3000 hours @ 105°C
Ripple Current (Low Frequency): 1.12A @ 120Hz
Ripple Current (High Frequency): 1.6016A @ 50kHz
Mounting Type: Through-hole
Package: Radial, can - snap-in
Size/Dimension: 0.984" Dia (25.00mm)
Height Seated (Max): 1.772" (45.00mm)
