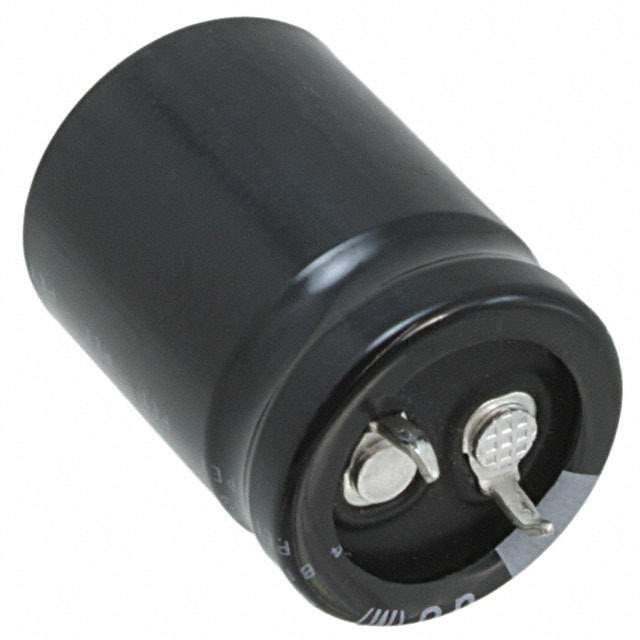

LGU2A102MELZ Real Image
Same model may have multiple batches, images only for reference.

LGU2A102MELZ

Part No LGU2A102MELZ
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description ALUMINUM ELECTROLYTIC CAPACITORS
Datasheet
LGU2A102MELZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series LGU
Packaging Bulk
Capacitance 1000μF
Tolerance ±20%
Voltage Rating DC 100V
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 1.54A @ 120Hz
Ripple Current - High Frequency 1.771A @ 50kHz
Lead Spacing 0.394" (10.00mm)
Size 0.866" Dia (22.00mm)
Height - Seated (Maximum) 1.260" (32.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 1196310-LGU2A102MELZ
Manufacturer Homepage www.nichicon-us.com
Popularity Medium
Supply and Demand Status Limited
Family Name GU
Introduction Date September 19, 2003
ECCN EAR99
Country of Origin China, Japan, Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian LGU2A102MELZ CAD Model

Description

The Nichicon LGU series capacitor is a high-quality device that is designed for general applications.

  • Capacitance: 1000μF
  • Voltage Rating: 100V DC
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • Low Frequency Ripple Current: 1.54A @ 120Hz
  • High Frequency Ripple Current: 1.771A @ 50kHz
  • Lifetime: 3000 Hrs @ 105°C
  • Supply and Demand Status: Limited
  • Mounting: Through-Hole
  • Halogen-Free: Not Compliant
