Same model may have multiple batches, images only for reference.

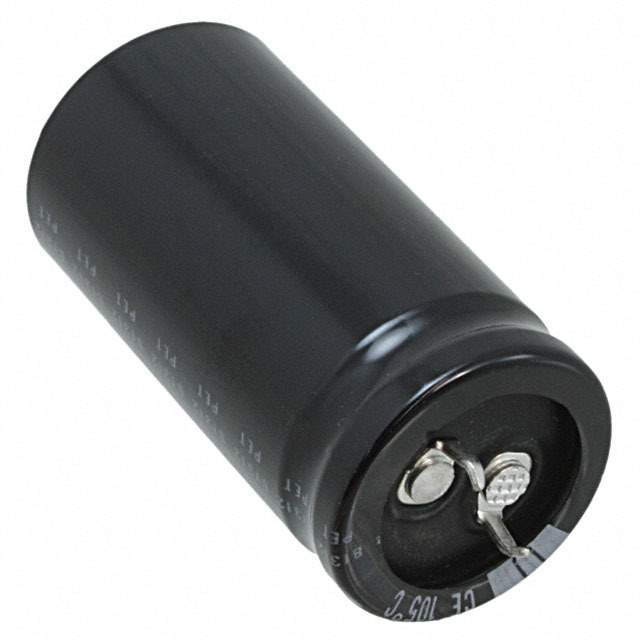

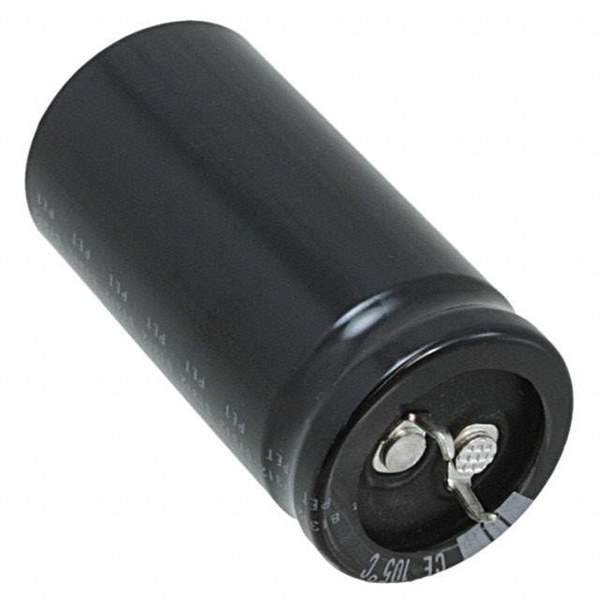

LGU1K392MELA

Name: LGU1K392MELA
Brand: Nichicon
SKU: 777934
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LGU1K392MELA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3900UF 20% 80V SNAP / Cap Aluminum Lytic 3900uF 80V 20% (25 X 50mm) Snap-In 10mm 2920mA 3000h 105°C Bulk
Datasheet	LGU1K392MELA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	LGU
Packaging	Bulk
Capacitance	3900μF
Tolerance	±20%
Voltage Rating DC	80V
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	2.92A @ 120Hz
Ripple Current - High Frequency	3.358A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.984" Dia (25.00mm)
Height - Seated (Maximum)	2.047" (52.00mm)
Mounting Style	Through Hole
Package	Radial, Can - Snap-In
Win Source Part Number	777934-LGU1K392MELA
Popularity	Medium
Supply and Demand Status	Limited
Family Name	GU
Introduction Date	September 19, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian LGU1K392MELA CAD Model

Description

This is a radial, can-snap-in capacitor from Nichicon with part number 777934-LGU1K392MELA.

Series: LGU
Capacitance: 3900μF
Tolerance: ±20%
Applications: General
Mounting Type: Through Hole
Operating Temperature: -40°C to 105°C
Supply and Demand Status: Limited
Polarization: Polarized
Ripple Current: 2.92A @ 120Hz, 3.358A @ 50kHz
Estimated EOL Date: 2027
