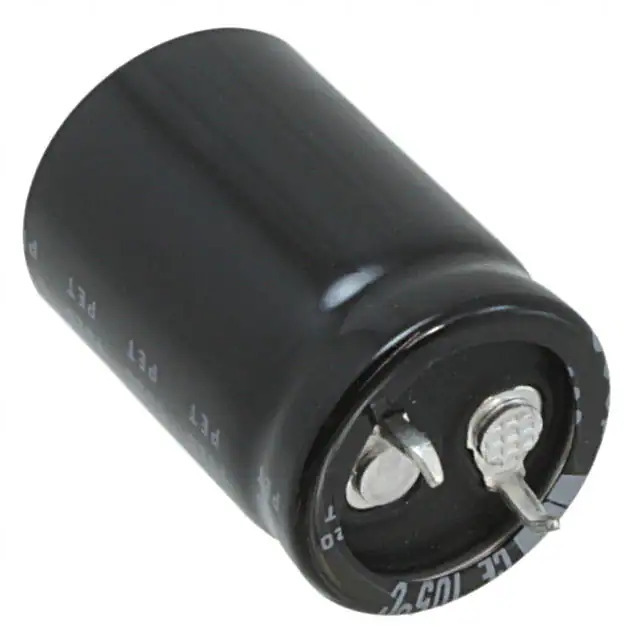

Same model may have multiple batches, images only for reference.
LGN2G101MELY30 Nichicon
Same model may have multiple batches, images only for reference.

LGN2G101MELY30

Part No LGN2G101MELY30
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 400V SNAP / 100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGN2G101MELY30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGN
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 680 mA @ 120 Hz
Ripple Current @ High Frequency 972.4 mA @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360701-LGN2G101MELY30
Ultra Librarian 3D Model Ultra Librarian LGN2G101MELY30 CAD Model

Description

The LGN2G101MELY30 is an aluminum electrolytic capacitor from Nichicon's LGN series. It is designed for general-purpose applications and has a capacitance of 100 μF with a tolerance of ±20%.

  • Series: LGN
  • Capacitance: 100 μF
  • Tolerance: ±20%
  • Rated Voltage: 400 V
  • Application: General Purpose
  • Ripple Current (Low Frequency): 680 mA @ 120 Hz
  • Ripple Current (High Frequency): 972.4 mA @ 50 kHz
  • Size: 0.787" diameter (20.00mm)
  • Height: 1.260" (32.00mm)
  • Mounting Type: Through Hole
  • Lifetime: 3000 hours @ 105°C
  • Package: Radial, Can - Snap-In
  • Packaging: Bulk
  • Product Status: Active
  • REACH Status: Unaffected
