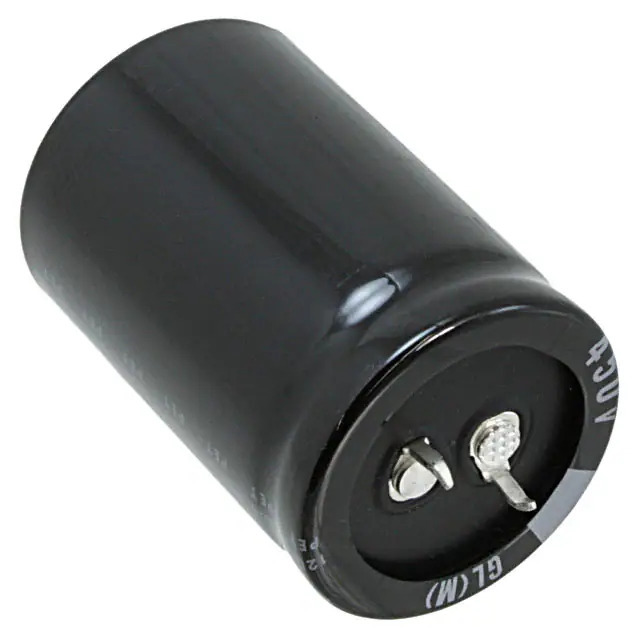

Same model may have multiple batches, images only for reference.
LGL2W471MELB45 Nichicon
Same model may have multiple batches, images only for reference.

LGL2W471MELB45

Part No LGL2W471MELB45
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 450V SNAP / 470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Datasheet
LGL2W471MELB45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGL
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.48 A @ 120 Hz
Ripple Current @ High Frequency 2.1164 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360762-LGL2W471MELB45
Ultra Librarian 3D Model Ultra Librarian LGL2W471MELB45 CAD Model

Description

The LGL2W471MELB45 is a radial, can - snap-in aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 470 µF
  • Voltage - Rated: 450 V
  • Applications: General Purpose
  • Operating Temperature: -25°C to 105°C
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 1.48 A @ 120 Hz
  • Ripple Current @ High Frequency: 2.1164 A @ 50 kHz
  • Series: LGL
  • Lead Spacing: 0.394" (10.00mm)
  • Size / Dimension: 1.181" Dia (30.00mm)
  • Height - Seated (Max): 1.850" (47.00mm)
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Product Status: Active
  • REACH Status: REACH unaffected
