Same model may have multiple batches, images only for reference.

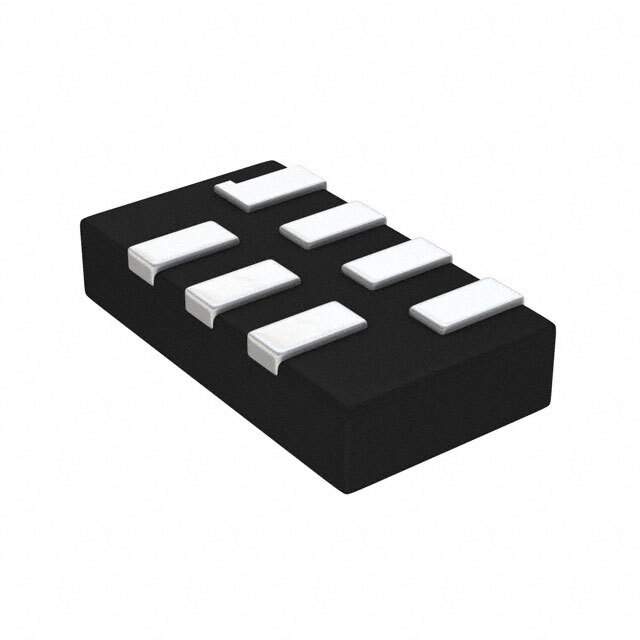

PUSB3TB6AZ Real Image
Same model may have multiple batches, images only for reference.

PUSB3TB6AZ

Part No PUSB3TB6AZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 4.8VC XSON7
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 7
Minimum Breakdown Voltage 6V
Max Clamping Voltage 4.8V (Typ)
Peak Pulse Current(Ippm) 3.5A (8/20μs)
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.27pF @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 7-XSON (1.1x2.1)
Win Source Part Number 1090739-PUSB3TB6AZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PUSB3TB6AZ CAD Model

Description

The PUSB3TB6AZ is a steering (rail to rail) type circuit protection component with 7 unidirectional channels manufactured by Nexperia USA Inc.

  • Manufacturer: Nexperia USA Inc.
  • Type: Steering (rail to rail)
  • Channels: 7 unidirectional
  • Application: General Purpose
  • Mounting: SMD (SMT)
  • Capacitance: 0.27pF @ 1MHz
  • Protection: Power Line
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 4.8V (Typ)
  • Peak Pulse Current(Ippm): 3.5A (8/20μs)
  • Operating Temperature: -40°C to 85°C (TA)
  • Package: 7-XSON (1.1x2.1)
