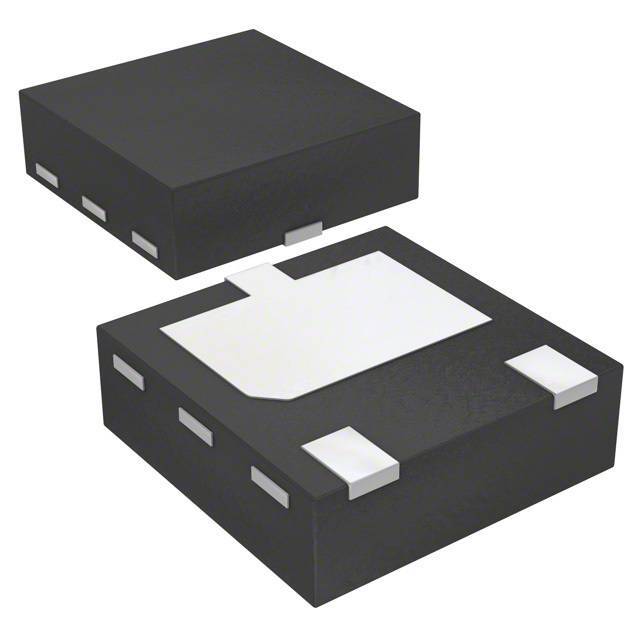

PTVS18VU1UPAZ Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PTVS18VU1UPAZ

Part No PTVS18VU1UPAZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 18VWM 29.2VC 3DFN / TVS Diode Single Dual Anode Uni-Dir 18V 3KW Automotive 3-Pin HUSON T/R
Datasheet
PTVS18VU1UPAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Packaging Reel package
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V (Maximum)
Minimum Breakdown Voltage 20V
Maximum Clamping Voltage 29.2V
Current - Peak Pulse (10/1000μs) 10.3A
Power - Peak Pulse 300W
Power Line Protection No
Applications Automotive
Operating Temperature Range -55°C ~ 150°C (TA)
Mounting SMD
Package 3-PowerUDFN
Manufacturer Package DFN2020-3
Win Source Part Number 792730-PTVS18VU1UPAZ
Popularity Medium
Supply and Demand Status Balance
Family Name PTVS18VU1UPA
Introduction Date March 06, 2014
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian PTVS18VU1UPAZ CAD Model

Description

The Nexperia PTVS18VU1UPAZ is a Zener diode designed for automotive applications.

  • Channel: Unidirectional
  • Maximum Reverse Standoff Voltage: 18V
  • Peak Pulse Current: 10.3A
  • Peak Power: 300W
  • Package: 3-PowerUDFN
  • Mounting: Surface Mount
  • RoHS: Yes
  • Halogen-Free: Yes
  • EOL Date: 2029
  • Family: PTVS18VU1UPA
