Same model may have multiple batches, images only for reference.

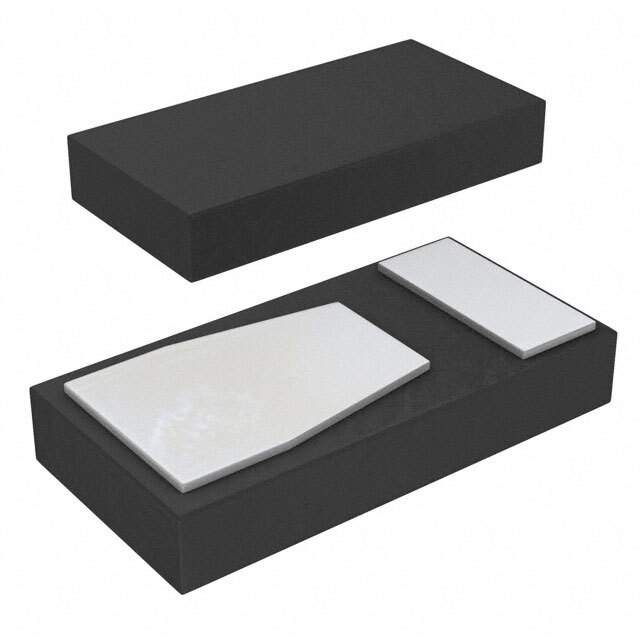

PTVS12VZ1USKNYL Real Image
Same model may have multiple batches, images only for reference.

PTVS12VZ1USKNYL

Part No PTVS12VZ1USKNYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 32VC DSN1608-2 / 32V Clamp 65A (8/20µs) Ipp Tvs Diode Surface Mount DSN1608-2
Datasheet
PTVS12VZ1USKNYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 32V
Current - Peak Pulse (10/1000µs) 65A (8/20µs)
Power - Peak Pulse 2100W (2.1kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 430pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package DSN1608-2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934069675315
Standard Package 10,000
Win Source Part Number 962180-PTVS12VZ1USKNYL
Ultra Librarian 3D Model Ultra Librarian PTVS12VZ1USKNYL CAD Model

Description

The PTVS12VZ1USKNYL is a Zener type TVS diode designed for general purpose applications.

  • Product: PTVS12VZ1USKNYL
  • Type: TVS Diode (Zener)
  • Application: General Purpose
  • Package: Tape and Reel
  • Standard Package: 10,000
  • Channel: Unidirectional
  • Voltage Reverse Standoff: 12V
  • Breakdown Voltage: 13.3V
  • Voltage Clamping @ Ipp: 32V
  • Capacitance @ Frequency: 430pF @ 1MHz
  • Current Peak Pulse: 65A (8/20μs)
  • Mounting Type: SMD (SMT)
  • Application: TVS - Diodes (circuit protection)
