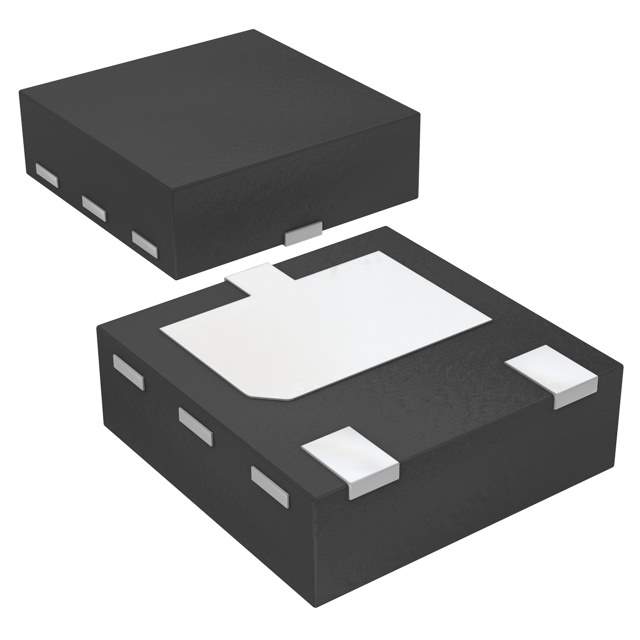

PTVS12VU1UPAZ Real Image
Same model may have multiple batches, images only for reference.

PTVS12VU1UPAZ

Part No PTVS12VU1UPAZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19.9VC 3DFN
Datasheet
PTVS12VU1UPAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 19.9V
Peak Pulse Current(Ippm) 15.1A
Power Dissipation - Pd 300W
Applications Automotive
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package DFN2020-3
Win Source Part Number 1090606-PTVS12VU1UPAZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTVS12VU1UPAZ CAD Model

Description

The Nexperia USA Inc. PTVS12VU1UPAZ is a Zener diode designed for use in circuit protection applications.

  • Package: DFN2020-3
  • Operating Temperature: -55°C to 150°C
  • Stand-Off Voltage: 12V
  • Minimum Breakdown Voltage: 13.3V
  • Maximum Clamping Voltage: 19.9V
  • Peak Pulse Current: 15.1A
  • Power Dissipation: 300W
  • Application: Automotive
