The 970143-PMPB10XNEAX is an N-Channel MOSFET that belongs to the Discrete Semiconductor Products category.

• Drain-to-Source Voltage (Vdss): 20 V
• Current Rating: 9A (Ta)
• Rds On (Max) @ Id, Vgs: 14mOhm @ 9A, 4.5V
• Vgs(th) (Max) @ Id: 0.9V @ 250µA
• Power Dissipation (Max): 1.7W (Ta), 12.5W (Tc)

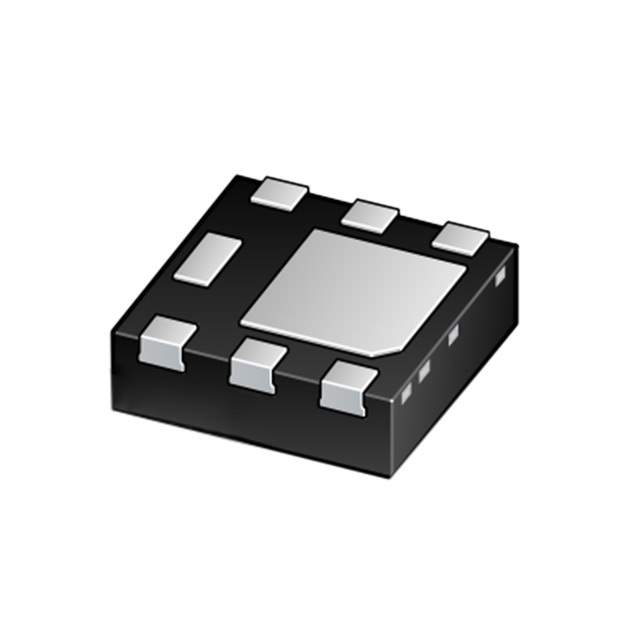

• Package: 6-UDFN Exposed Pad
• Supplier Device Package: DFN2020MD-6
• Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds: 2175 pF @ 10 V
• Vgs (Max): ±12V
• Operating Temperature: -55°C to 150°C (TJ)
• Series: Automotive, AEC-Q101, TrenchMOS™
• Package: Tape & Reel (TR)
• Standard Package: 3,000
• MSL Level: 1 (Unlimited)
• Base Product Number: PMPB10
• Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
• Manufacturer: Nexperia USA Inc.
