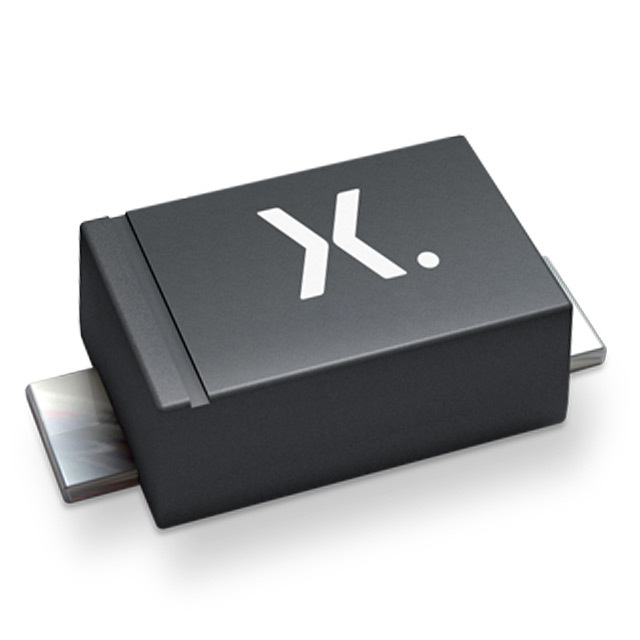

PMEG120G20ELRX Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG120G20ELRX

Part No PMEG120G20ELRX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SIGE 120V 2A SOD123W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Product Status Active
Technology SiGe (Silicon Germanium)
Voltage - DC Reverse (Vr) (Max) 120 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 840 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 11 ns
Current - Reverse Leakage @ Vr 30 nA @ 120 V
Capacitance @ Vr, F 75pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123W
Supplier Device Package SOD-123W
Operating Temperature - Junction 175°C (Max)
Base Product Number PMEG120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366969-PMEG120G20ELRX
Ultra Librarian 3D Model Ultra Librarian PMEG120G20ELRX CAD Model

Description

The PMEG120G20ELRX is a single diode rectifier from the PMEG120 series. It comes in a SOD-123W package and is designed for surface mount applications.

  • Diode Type: Single
  • Voltage - Reverse Peak (Max): 120V
  • Current - Average Rectified (Io): 2A
  • Voltage - Forward (Vf) (Max) @ If: 840mV @ 2A
  • Speed: Fast Recovery =< 500ns
  • Reverse Recovery Time (trr): 11ns
  • Current - Reverse Leakage @ Vr: 30nA @ 120V
  • Max Junction Temperature: 175°C
