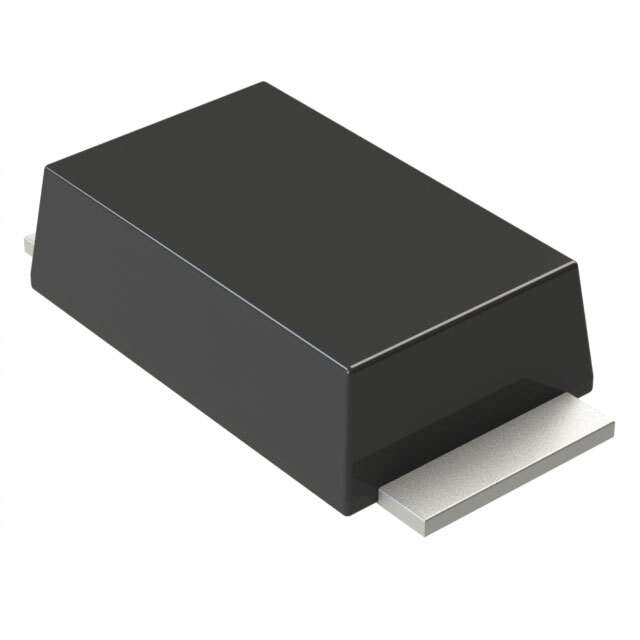

PMEG10020AELPX

Name: PMEG10020AELPX
Brand: Nexperia USA Inc.
SKU: 988460
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMEG10020AELPX
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 100V 2A CFP5 / Diode Schottky 100 V 2A Surface Mount SOD-128/CFP5
Datasheet	PMEG10020AELPX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	770 mV @ 2 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5 ns
Current - Reverse Leakage @ Vr	300 nA @ 100 V
Capacitance @ Vr, F	135pF @ 1V, 1MHz
Mounting	SMD (SMT)
Package / Case	SOD-128
Supplier Device Package	SOD-128/CFP5
Operating Temperature - Junction	175°C (Max)
Base Product Number	PMEG10020
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	934069175115,568-12694-2,568-12694-1,1727-2395-6,568-12694-6,1727-2395-2,568-12694-6-ND,1727-2395-1,568-12694-1-ND,568-12694-2-ND
Standard Package	3,000
Win Source Part Number	988460-PMEG10020AELPX
Ultra Librarian 3D Model	Ultra Librarian PMEG10020AELPX CAD Model

Alternative Products

Description

The Nexperia USA Inc. PMEG10020AELPX is a Schottky diode with a maximum reverse voltage of 100V and an average rectified current of 2A.

Manufacturer: Nexperia USA Inc.
Product: PMEG10020AELPX
Type: Schottky Diode
Maximum Reverse Voltage: 100V
Average Rectified Current: 2A
Forward Voltage: 770mV @ 2A
Reverse Recovery Time: 5ns
Reverse Leakage Current: 300nA @ 100V
Capacitance: 135pF @ 1V and 1MHz
Operating Temperature Range: Up to 175°C
Package: SOD-128
Suitable For: Discrete semiconductor products
