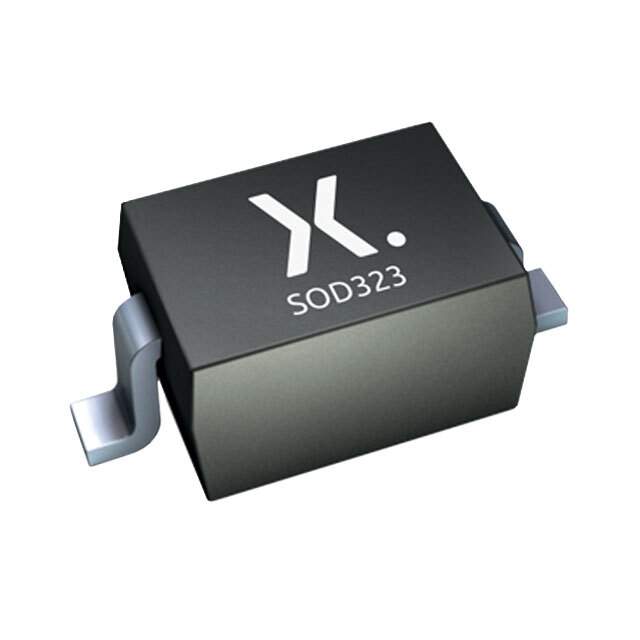

The PESD5V0S1UAF is an ElectroStatic Discharge (ESD) protection diode manufactured by Nexperia USA Inc. It is designed to protect sensitive electronic components from ESD strikes, ensuring the reliability and longevity of electronic devices.

Applications

• Mobile phones
• Tablets
• Wearable devices
• Portable electronics
• USB interfaces
• HDMI interfaces

Features

• Ultra-Low Capacitance: Minimizes signal distortion.
• Fast Response Time: Quickly clamps ESD strikes.
• Small Package Size: Saves board space.
• Low Clamping Voltage: Protects sensitive components.
• AEC-Q101 Qualified: Suitable for automotive applications.
• RoHS Compliant: Environmentally friendly.

Benefits

• Effective ESD Protection: Prevents damage from ESD strikes.
• High Signal Integrity: Maintains signal quality with low capacitance.
• Compact Design: Enables miniaturization of electronic devices.
• Increased Reliability: Extends the lifespan of electronic products.
• Automotive Grade: Suitable for demanding automotive environments.

Technical Specifications

The PESD5V0S1UAF has an ultra-low capacitance, typically around 0.25 pF. It has a reverse standoff voltage of 5V and a clamping voltage of approximately 9V at an 8/20 μs pulse. The ESD withstand capability is up to ±15 kV contact discharge according to IEC 61000-4-2 standard. It is available in a small DFN1006-2 package. The operating temperature range typically spans from -55°C to +125°C. This ESD protection diode is optimized to protect high-speed data lines and interfaces from ESD events. The extremely low capacitance makes it suitable for applications where signal integrity is critical. It ensures robust protection without compromising the performance of the electronic system.
