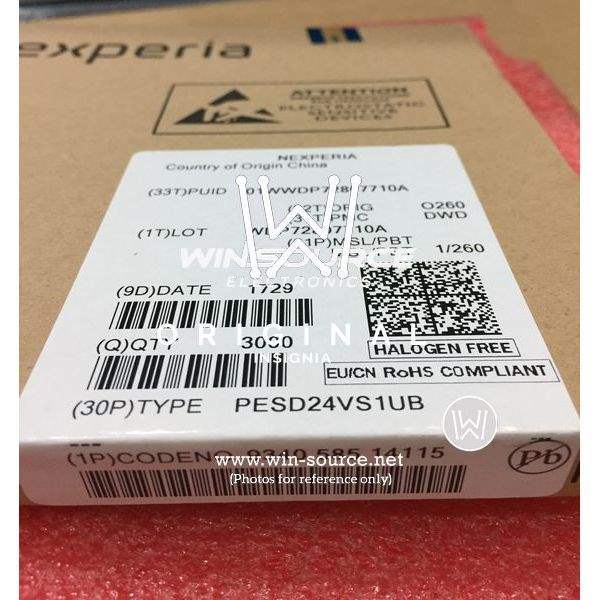

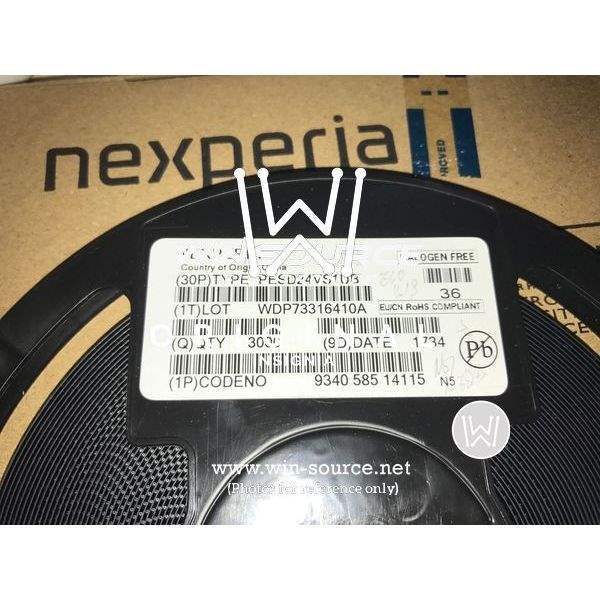

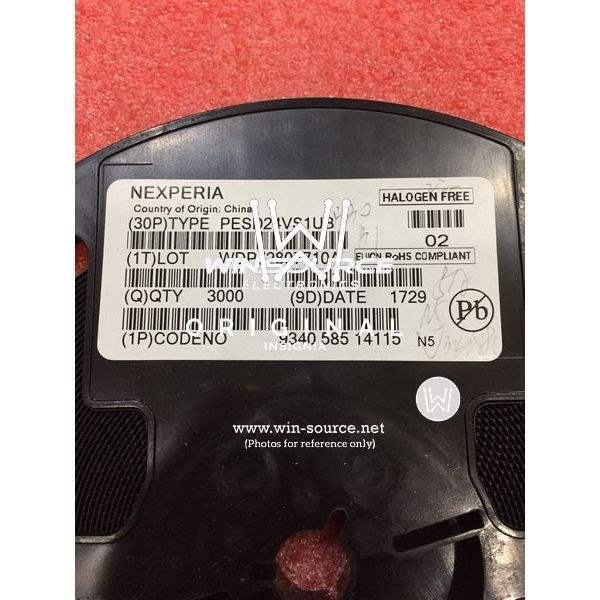

PESD24VS1UB,115 Nexperia USA Inc. PESD24VS1UB,115 real image PESD24VS1UB,115 label picture PESD24VS1UB,115 label picture 2 PESD24VS1UB,115 label picture 3
Same model may have multiple batches, images only for reference.
PESD24VS1UB,115 Nexperia USA Inc. PESD24VS1UB,115 real image PESD24VS1UB,115 label picture PESD24VS1UB,115 label picture 2 PESD24VS1UB,115 label picture 3
PESD24VS1UB,115 Nexperia USA Inc. PESD24VS1UB,115 real image PESD24VS1UB,115 label picture PESD24VS1UB,115 label picture 2 PESD24VS1UB,115 label picture 3
Same model may have multiple batches, images only for reference.

PESD24VS1UB,115

Part No PESD24VS1UB,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 70VC SOD523
Datasheet
PESD24VS1UB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V (Max)
Minimum Breakdown Voltage 26.5V
Max Clamping Voltage 70V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 160W
Applications General Purpose
Capacitance @ Frequency 23pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1087540-PESD24VS1UB,115
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PESD24VS1UB,115 CAD Model

Description

The PESD24VS1UB,115 is a Zener type electronic component manufactured by Nexperia USA Inc.

  • Application: General Purpose
  • Capacitance: 23pF @ 1MHz
  • Mounting Type: SMD (SMT)
  • STAND-OFF Voltage (Vwm): 24V (Max)
  • Minimum Breakdown Voltage: 26.5V
  • Maximum Clamping Voltage: 70V
  • Peak Pulse Current (Ippm): 3A (8/20μs)
  • Power Dissipation - Pd: 160W
