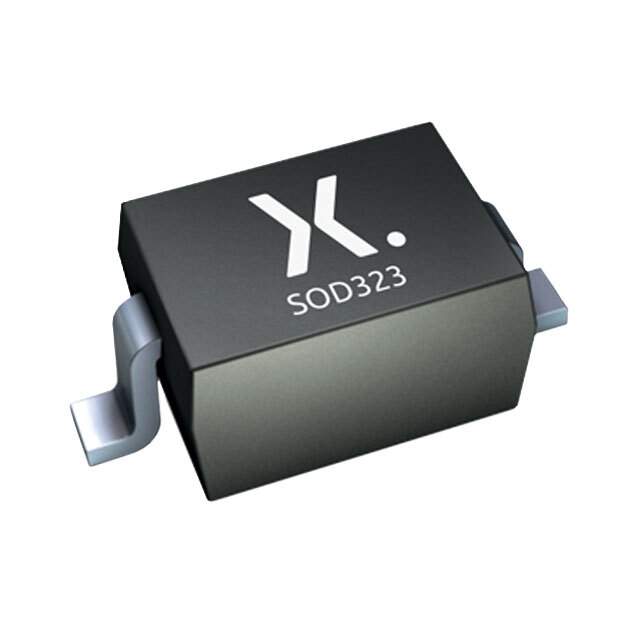

PESD1IVN27-AX Real Image
Same model may have multiple batches, images only for reference.

PESD1IVN27-AX

Part No PESD1IVN27-AX
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 27VWM 45VC SOD323 / 45V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Datasheet
PESD1IVN27-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 27V (Max)
Voltage - Breakdown (Min) 28V
Voltage - Clamping (Max) @ Ipp 45V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power Line Protection No
Applications Automotive, CAN
Capacitance @ Frequency 14pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Base Product Number PESD1IVN27
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-7621-6,1727-7621-2,1727-7621-1,934660121115,PESD1IVN27-AX-ND
Standard Package 3,000
Win Source Part Number 958285-PESD1IVN27-AX
Ultra Librarian 3D Model Ultra Librarian PESD1IVN27-AX CAD Model

Description

The PESD1IVN27-AX is a Zener type TVS diode designed for automotive and CAN applications. It is a bidirectional channel diode that provides reverse standoff voltage of 27V and breakdown voltage of 28V.

  • Clamping Voltage @ Peak Pulse Current: 45V
  • Capacitance: 14pF @ 1MHz frequency
  • Mounting: SMD (SMT)
  • Package: SC-76, SOD-323
  • Standard Package: 3,000 unit
  • Manufacturer: Nexperia USA Inc.
  • Operating Temperature Range: -55°C to 150°C (TA)
  • REACH: Unaffected
  • Alternative Part: PESD1IVN27-AXPESD1IVN27AX
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.10.0080
