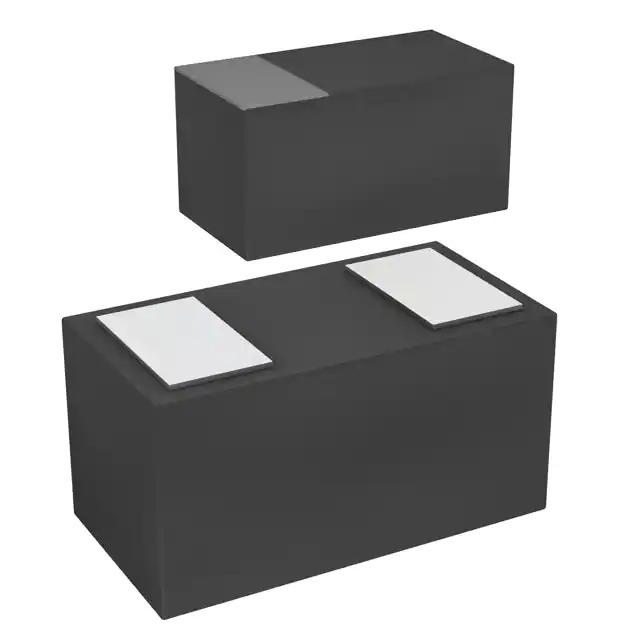

PESD18VV1BBSFYL

Name: PESD18VV1BBSFYL
Brand: Nexperia USA Inc.
SKU: 1362207
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PESD18VV1BBSFYL
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 18VWM 26.5VC DSN0603-2 / 26.5V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet	PESD18VV1BBSFYL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Series	-
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V (Max)
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	26.5V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	4.1pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	DSN0603-2
Base Product Number	PESD18
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362207-PESD18VV1BBSFYL
Ultra Librarian 3D Model	Ultra Librarian PESD18VV1BBSFYL CAD Model

Alternative Products

Description

The PESD18VV1BBSFYL is a bidirectional TVS diode designed for circuit protection against electrostatic discharge (ESD) and other transient voltage events.

Reverse Standoff Voltage: 18V
Clamping Voltage @ Peak Pulse Current: 26.5V @ 3A
Application: General Purpose
Mounting Type: Surface Mount
Package: 0201
REACH: Unaffected
ECCN: EAR99
Operating Temperature: -40°C to 125°C
Manufacturer: Nexperia USA Inc.
Diode Type: Bidirectional TVS
