Same model may have multiple batches, images only for reference.

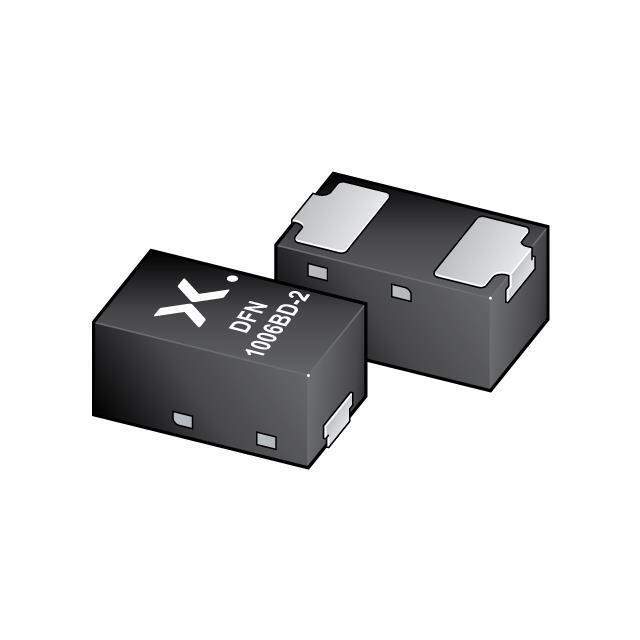

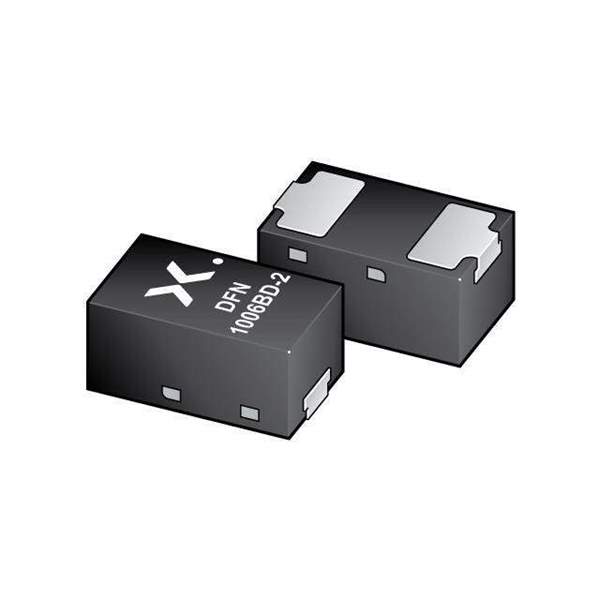

PESD15VS1ULSYL Real Image
Same model may have multiple batches, images only for reference.

PESD15VS1ULSYL

Part No PESD15VS1ULSYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description PESD15VS1ULS/SOD882BD/XSON2 / 40V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006BD-2
Datasheet
PESD15VS1ULSYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 17.6V
Voltage - Clamping (Max) @ Ipp 40V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power Line Protection No
Applications Automotive
Capacitance @ Frequency 32pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package DFN1006BD-2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-PESD15VS1ULSYLDKR,1727-PESD15VS1ULSYLTR,1727-PESD15VS1ULSYLCT,934661717315
Standard Package 10,000
Win Source Part Number 1178303-PESD15VS1ULSYL
Ultra Librarian 3D Model Ultra Librarian PESD15VS1ULSYL CAD Model

Description

The PESD15VS1ULSYL from Nexperia USA Inc. is an automotive-grade Zener diode that offers excellent circuit protection.

  • Grade: Automotive-grade
  • Type: Zener diode
  • Benefit: Excellent circuit protection
  • Reverse Standoff Voltage: 15V
  • Breakdown Voltage: 17.6V
  • Capacitance: 32pF @ 1MHz
  • Current Peak Pulse: 5A (8/20µs)
  • Package: Tape and reel
  • Application: Ideal for automotive applications
  • Supply and Demand Status: Balanced
