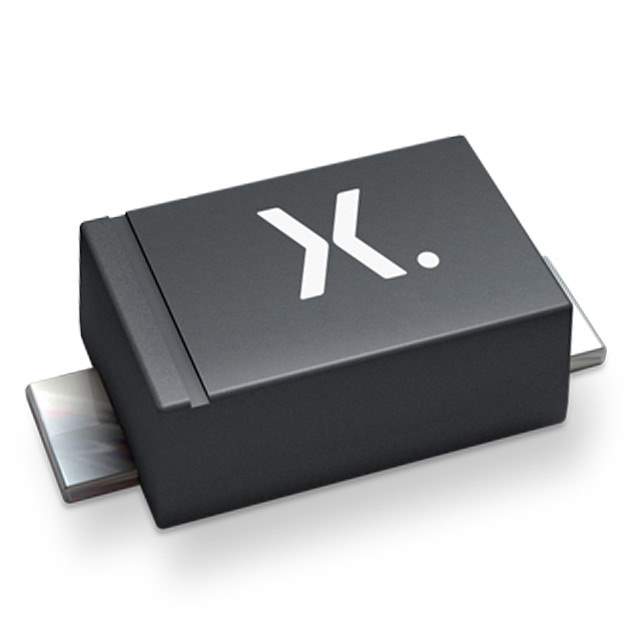

PMEG6020AELRX

Name: PMEG6020AELRX
Brand: Nexperia USA Inc.
SKU: 1324286
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PMEG6020AELRX
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 60V 2A SOD123W / Diode Schottky 60 V 2A Surface Mount SOD-123W
Datasheet	PMEG6020AELRX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	60 V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	670 mV @ 2 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	9 ns
Current - Reverse Leakage @ Vr	700 nA @ 60 V
Capacitance @ Vr, F	220pF @ 1V, 1MHz
Mounting	Surface Mount
Case / Package	SOD-123W
Supplier Device Package	SOD-123W
Operating Temperature - Junction	175°C (Max)
Base Product Number	PMEG6020
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	568-12710-2,934068897115,1727-2411-1,1727-2411-2,568-12710-6-ND,568-12710-1-ND,NEXNEXPMEG6020AELRX,568-12710-1,1727-2411-6,568-12710-2-ND,568-12710-6,2156-PMEG6020AELRX-NEX
Standard Package	3,000
Win Source Part Number	1324286-PMEG6020AELRX
Ultra Librarian 3D Model	Ultra Librarian PMEG6020AELRX CAD Model

Alternative Products

Description

The Nexperia PMEG6020AELRX is a surface mount Schottky diode with a maximum reverse voltage of 60V and an average rectified current of 2A.

Maximum Reverse Voltage: 60V
Average Rectified Current: 2A
Fast Recovery Time: less than 500ns
Maximum Forward Voltage: 670mV @ 2A
Reverse Recovery Time: 9ns
Reverse Leakage Current: 700nA @ 60V
Capacitance: 220pF @ 1V, 1MHz
Package: SOD-123W
RoHS3 Compliant: Yes
