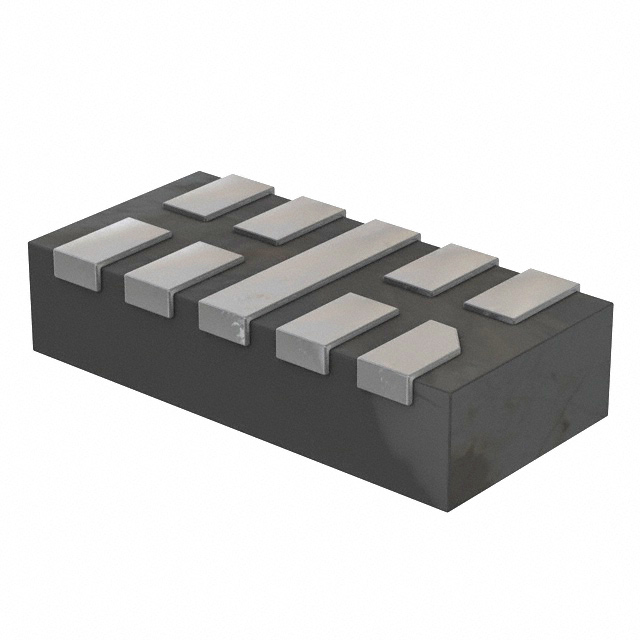

Same model may have multiple batches, images only for reference.
IP4285CZ9-TBB,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4285CZ9-TBB,115

Part No IP4285CZ9-TBB,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 3.9VC 9XSON
Datasheet
IP4285CZ9-TBB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 3.9V (Typ)
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Line Protection Yes
Applications HDMI
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 9-XSON (2.1x1) DFN2110-9
Win Source Part Number 1045678-IP4285CZ9-TBB,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4285CZ9-TBB,115 CAD Model

Description

The IP4285CZ9-TBB,115 electronic component is manufactured by Nexperia USA Inc. and is a circuit protection component.

  • Popularity: Medium
  • Lifecycle Status: Obsolete
  • Type: Steering (Rail to Rail)
  • Application: HDMI
  • Mounting Type: SMD (SMT)
  • Voltage - Standoff (Vwm): 5.5V
  • Win Source Part Number: 1045678
